LIGHTING (INT)  VANITY LIGHT SWITCH  INSPECTION

1.302,2.25 1.135,2.25 1.135,2.25 1.042,3.083 false 1.677,2.708 1.802,2.135 1.802,2.135 1.906,2.135 false 1.813,3.771 1.885,4.104 1.885,4.104 1.99,4.104 false 0.292,0.25 0.563,0.458 0.271,0.208 10 false *a 1.969,2.073 2.24,2.281 0.271,0.208 10 false *b 2.021,4.031 2.292,4.24 0.271,0.208 10 false *c 1.365,2.198 1.635,2.406 0.271,0.208 10 false *d

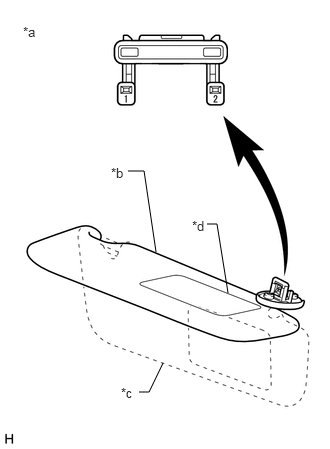

*a	Component without harness connected (Vanity Light Switch LH (Visor Assembly LH))
*b	Visor up
*c	Visor down
*d	Mirror Cover

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Visor up	10 kΩ or higher
1 - 2	Mirror cover fully closed with visor down	10 kΩ or higher
1 - 2	Mirror cover fully open with visor down	Below 1 Ω

If the result is not as specified, replace the vanity light switch LH (visor assembly LH).

1.333,1.781 1.5,1.781 1.5,1.781 1.625,2.625 false 2.375,3.052 2.26,2.333 2.26,2.333 2.156,2.333 false 1.698,3.781 1.552,4.083 1.552,4.083 1.448,4.083 false 0.24,0.25 0.51,0.458 0.271,0.208 10 false *a 1.156,1.719 1.427,1.927 0.271,0.208 10 false *b 1.26,4.01 1.531,4.219 0.271,0.208 10 false *c 2,2.271 2.271,2.479 0.271,0.208 10 false *d

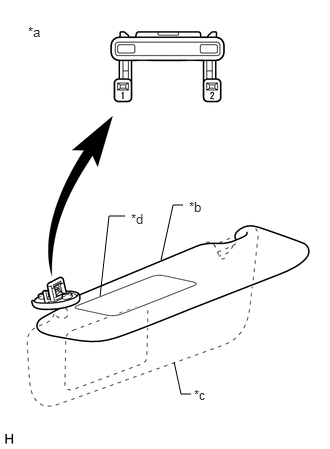

*a	Component without harness connected (Vanity Light Switch RH (Visor Assembly RH))
*b	Visor up
*c	Visor down
*d	Mirror Cover

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Visor up	10 kΩ or higher
1 - 2	Mirror cover fully closed with visor down	10 kΩ or higher
1 - 2	Mirror cover fully open with visor down	Below 1 Ω

If the result is not as specified, replace the vanity light switch RH (visor assembly RH).
