RM38N0EC _58 Vehicle Interior _111833 LIGHTING (INT) _0499885 BACK DOOR COURTESY SWITCH G

LIGHTING (INT) BACK DOOR COURTESY SWITCH INSPECTION

PROCEDURE

Hide Display 69350P 1.INSPECT BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/o Power Back Door)

1.573,3.365 1.979,3.542 0.406,0.177 1.521,1.323 1,1.323 true 1.563,3.135 1.115,3.135 true 1.344,4.26 1.521,4.01 true 2.208,4.26 2.021,4.021 true 1.792,4.25 1.792,4.021 true 0.354,2.24 0.667,2.438 0.313,0.198 10 false *a 1.073,3.625 1.385,3.823 0.313,0.198 10 false *c 0.375,0.125 0.688,0.323 0.313,0.198 10 false *b 1.125,4.208 1.375,4.406 0.25,0.198 10 false D+ 1.646,4.302 2.26,4.5 0.615,0.198 10 false ACT- 2.292,4.198 2.906,4.396 0.615,0.198 10 false ACT+ 0.969,3.031 1.281,3.229 0.313,0.198 10 false *1 0.854,1.24 1.167,1.438 0.313,0.198 10 false *1 1.688,3.375 2,3.573 0.313,0.198 10 false T7

*1	Latch
*a	Open
*b	Close
*c	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)

Check the operation of the door lock motor.

Move the back door lock with courtesy light switch assembly to the close position.

ii.

Apply auxiliary battery voltage to the door lock motor assembly and check the operation of the door lock motor.

OK:

Tester Connection	Specified Condition
Click Location & Routing(T7)Location & Routingewd_type=routing;type=c;code=T7 Click Connector(T7)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T7;pinno=1,2
T7-1 (ACT+) - Auxiliary battery positive (+) T7-2 (ACT-) - Auxiliary battery negative (-)	Close → Open

Tester Connection

Specified Condition

Click Location & Routing(T7)Location & Routingewd_type=routing;type=c;code=T7

Click Connector(T7)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T7;pinno=1,2

T7-1 (ACT+) - Auxiliary battery positive (+)
T7-2 (ACT-) - Auxiliary battery negative (-)

Close → Open

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

Check the operation of the door courtesy switch.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
Click Location & Routing(T7)Location & Routingewd_type=routing;type=c;code=T7 Click Connector(T7)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T7;pinno=2,3
T7-2 (ACT-) - T7-3 (D+)	Close	10 kΩ or higher
T7-2 (ACT-) - T7-3 (D+)	Open	Below 1 Ω

Tester Connection

Switch Condition

Specified Condition

Click Location & Routing(T7)Location & Routingewd_type=routing;type=c;code=T7

Click Connector(T7)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T7;pinno=2,3

T7-2 (ACT-) - T7-3 (D+)

10 kΩ or higher

T7-2 (ACT-) - T7-3 (D+)

Open

Below 1 Ω

If the result is not as specified, replace the back door lock with courtesy light switch assembly.

Hide Display 69350P 2.INSPECT BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH (w/ Power Back Door)

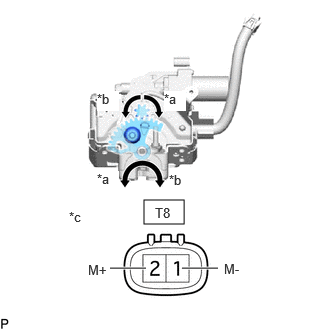

1.5,2.083 1.917,2.333 0.417,0.25 1.896,2.792 2.271,2.792 true 1.146,2.792 1.521,2.792 true 1.01,0.948 1.24,1.156 0.229,0.208 10 true *b 1.708,0.948 1.938,1.156 0.229,0.208 10 true *a 0.719,2.177 0.948,2.385 0.229,0.208 10 false *c 2.333,2.719 2.646,2.917 0.313,0.198 10 false M- 0.917,2.729 1.229,2.927 0.313,0.198 10 false M+ 1.01,1.781 1.24,1.99 0.229,0.208 10 true *a 1.76,1.792 1.99,2 0.229,0.208 10 true *b 1.615,2.135 1.927,2.333 0.313,0.198 10 false T8

*a	Open Operation Direction
*b	Close Operation Direction
*c	Component without harness connected (Back Door Lock Assembly with Courtesy Light Switch)

Check the operation.

Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.

OK:

Tester Connection	Result
Click Location & Routing(T8)Location & Routingewd_type=routing;type=c;code=T8 Click Connector(T8)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T8;pinno=1,2
T8-1 (M-) - Auxiliary battery positive (+) T8-2 (M+) - Auxiliary battery negative (-)	Open Operation
T8-2 (M+) - Auxiliary battery positive (+) T8-1 (M-) - Auxiliary battery negative (-)	Close Operation

Tester Connection

Result

Click Location & Routing(T8)Location & Routingewd_type=routing;type=c;code=T8

Click Connector(T8)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T8;pinno=1,2

T8-1 (M-) - Auxiliary battery positive (+)
T8-2 (M+) - Auxiliary battery negative (-)

Open Operation

T8-2 (M+) - Auxiliary battery positive (+)
T8-1 (M-) - Auxiliary battery negative (-)

Close Operation

If the result is not as specified, replace the back door lock assembly with courtesy light switch.

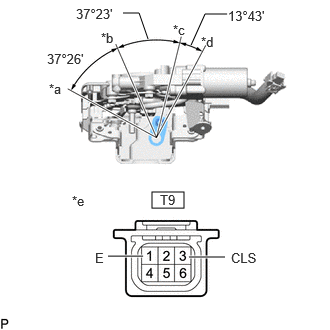

1.583,2 1.917,2.167 0.333,0.167 1.99,0.469 2.135,0.146 2.135,0.146 2.365,0.146 true 1.125,2.667 1.49,2.667 true 2.344,2.677 1.969,2.677 true 1.542,0.406 1.448,0.135 1.448,0.135 1.281,0.135 true 0.49,0.531 1.281,0.708 0.792,0.177 10 false 37°26' 0.792,0.063 1.635,0.313 0.844,0.25 10 false 37°23' 2.375,0.083 3.052,0.281 0.677,0.198 10 false 13°43' 0.51,0.844 0.823,1.042 0.313,0.198 10 false *a 1.052,0.313 1.365,0.51 0.313,0.198 10 false *b 1.802,0.229 2.115,0.427 0.313,0.198 10 false *c 2.094,0.354 2.385,0.521 0.292,0.167 10 false *d 0.75,2.01 1.063,2.208 0.313,0.198 10 false *e 2.406,2.604 2.906,2.906 0.5,0.302 10 false CLS 0.99,2.604 1.448,2.802 0.458,0.198 10 false E 1.667,2 1.979,2.198 0.313,0.198 10 false T9

*a	Open Position
*b	Half-latch Position
*c	Full-latch Position
*d	Overstroke Position
*e	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)

Check the resistance of the half latch switch.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(T9)Location & Routingewd_type=routing;type=c;code=T9 Click Connector(T9)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T9;pinno=1,3
T9-1 (E) - T9-3 (CLS)	Open position	Below 1 Ω
T9-1 (E) - T9-3 (CLS)	Open position → Half-latch position	Below 1 Ω → 10 kΩ or higher
T9-1 (E) - T9-3 (CLS)	Half-latch position	10 kΩ or higher
T9-1 (E) - T9-3 (CLS)	Full-latch position	10 kΩ or higher
T9-1 (E) - T9-3 (CLS)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock assembly with courtesy light switch.

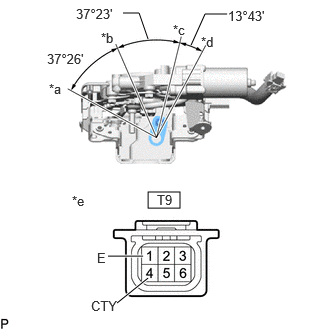

1.542,2 1.875,2.167 0.333,0.167 1.99,0.469 2.135,0.146 2.135,0.146 2.365,0.146 true 1.125,2.667 1.49,2.667 true 1.542,2.896 1.219,3.156 true 1.542,0.406 1.448,0.135 1.448,0.135 1.281,0.135 true 0.49,0.531 1.281,0.708 0.792,0.177 10 false 37°26' 0.792,0.063 1.635,0.313 0.844,0.25 10 false 37°23' 2.375,0.083 3.052,0.281 0.677,0.198 10 false 13°43' 0.51,0.844 0.823,1.042 0.313,0.198 10 false *a 1.052,0.313 1.365,0.51 0.313,0.198 10 false *b 1.802,0.229 2.115,0.427 0.313,0.198 10 false *c 2.094,0.354 2.385,0.521 0.292,0.167 10 false *d 0.75,2.01 1.063,2.208 0.313,0.198 10 false *e 0.948,3.104 1.406,3.302 0.458,0.198 10 false CTY 1.01,2.604 1.469,2.802 0.458,0.198 10 false E 1.635,2 1.948,2.198 0.313,0.198 10 false T9

*a	Open Position
*b	Half-latch Position
*c	Full-latch Position
*d	Overstroke Position
*e	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)

Check the resistance of the full latch switch.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(T9)Location & Routingewd_type=routing;type=c;code=T9 Click Connector(T9)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T9;pinno=4,1
T9-4 (CTY) - T9-1 (E)	Open position	Below 1 Ω
T9-4 (CTY) - T9-1 (E)	Half-latch position	Below 1 Ω
T9-4 (CTY) - T9-1 (E)	Half-latch position → Full-latch position	Below 1 Ω → 10 kΩ or higher
T9-4 (CTY) - T9-1 (E)	Full-latch position	10 kΩ or higher
T9-4 (CTY) - T9-1 (E)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock assembly with courtesy light switch.

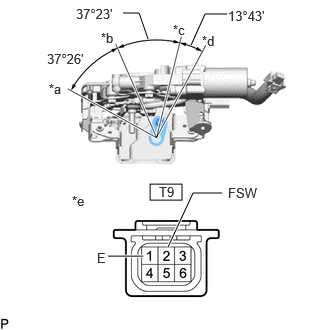

1.563,1.917 1.896,2.083 0.333,0.167 1.99,0.469 2.135,0.146 2.135,0.146 2.365,0.146 true 1.125,2.667 1.49,2.667 true 1.75,2.573 2.01,2.01 2.01,2.01 2.313,2.01 true 1.542,0.406 1.448,0.135 1.448,0.135 1.281,0.135 true 0.49,0.531 1.281,0.708 0.792,0.177 10 false 37°26' 0.792,0.063 1.635,0.313 0.844,0.25 10 false 37°23' 2.375,0.083 3.052,0.281 0.677,0.198 10 false 13°43' 0.51,0.844 0.823,1.042 0.313,0.198 10 false *a 1.052,0.313 1.365,0.51 0.313,0.198 10 false *b 1.802,0.229 2.115,0.427 0.313,0.198 10 false *c 2.104,0.344 2.396,0.51 0.292,0.167 10 false *d 0.75,2.01 1.063,2.208 0.313,0.198 10 false *e 2.375,1.927 2.906,2.313 0.531,0.385 10 false FSW 1.01,2.604 1.469,2.802 0.458,0.198 10 false E 1.656,1.917 1.969,2.115 0.313,0.198 10 false T9

*a	Open Position
*b	Half-latch Position
*c	Full-latch Position
*d	Overstroke Position
*e	Component without harness connected (Back Door Lock with Courtesy Light Switch Assembly)

Check the resistance of the pawl switch.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(T9)Location & Routingewd_type=routing;type=c;code=T9 Click Connector(T9)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T9;pinno=2,1
T9-2 (FSW) - T9-1 (E)	Open-latch	10 kΩ or higher
T9-2 (FSW) - T9-1 (E)	Open position → Half-latch position	10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
T9-2 (FSW) - T9-1 (E)	Half-latch position	10 kΩ or higher
T9-2 (FSW) - T9-1 (E)	Half-latch position → Full-latch position	10 kΩ or higher → Below 1 Ω → 10 kΩ or higher
T9-2 (FSW) - T9-1 (E)	Full-latch position	10 kΩ or higher
T9-2 (FSW) - T9-1 (E)	Overstroke position	10 kΩ or higher

If the result is not as specified, replace the back door lock assembly with courtesy light switch.

Check the operation of the selector switch.

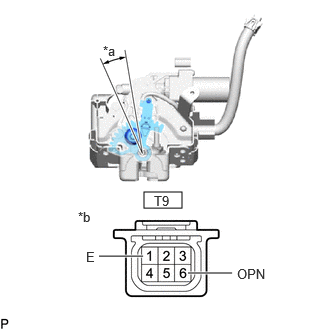

1.5,2 1.896,2.167 0.396,0.167 1.031,2.667 1.49,2.667 true 1.958,2.844 2.417,2.844 true 1.073,0.448 1.385,0.646 0.313,0.198 10 false *a 0.813,2.177 1.125,2.375 0.313,0.198 10 false *b 2.469,2.771 2.917,2.979 0.448,0.208 10 false OPN 0.896,2.594 1.302,2.802 0.406,0.208 10 false E 1.604,2.01 1.917,2.208 0.313,0.198 10 false T9

*a	Sector Gear in Neutral Position
*b	Component without harness connected (Back Door Lock Assembly with Courtesy Light Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(T9)Location & Routingewd_type=routing;type=c;code=T9 Click Connector(T9)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T9;pinno=6,1
T9-6 (OPN) - T9-1 (E)	Selector gear in neutral position (Selector switch on)	Below 1 Ω
T9-6 (OPN) - T9-1 (E)	Selector gear not in neutral position (Selector switch off)	10 kΩ or higher

Tester Connection

Condition

Specified Condition

Click Location & Routing(T9)Location & Routingewd_type=routing;type=c;code=T9

Click Connector(T9)Body>No. 1 Back Door Wire>Back Door Lock Assembly with Courtesy Light Switchewd_type=component;type=c;code=T9;pinno=6,1

T9-6 (OPN) - T9-1 (E)

Selector gear in neutral position
(Selector switch on)

Below 1 Ω

T9-6 (OPN) - T9-1 (E)

Selector gear not in neutral position
(Selector switch off)

10 kΩ or higher

If the result is not as specified, replace the back door lock assembly with courtesy light switch.
