LIGHTING (INT)  REAR DOOR COURTESY SWITCH  INSPECTION

2.667,1.635 3.01,1.833 0.344,0.198 1.188,1.26 1.188,1.708 1.188,1.708 1.406,1.708 false 0.271,0.219 0.646,0.531 0.375,0.313 10 false *a 1.427,1.635 1.771,1.969 0.344,0.333 10 false *b 2.771,1.656 3.083,1.854 0.313,0.198 10 false L6

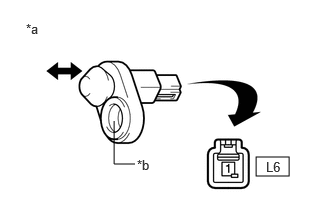

*a	Component without harness connected (Rear Door Courtesy Light Switch Assembly LH)
*b	Switch Body

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(L6)Location & Routingewd_type=routing;type=c;code=L6 Click Connector(L6)Body>No. 2 Floor Wire>Rear Door Courtesy Light Switch Assembly LHewd_type=component;type=c;code=L6;pinno=1
L6-1 - Switch body	Not pushed (ON)	Below 1 Ω
	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace the rear door courtesy light switch assembly LH.

2.667,1.635 3.031,1.833 0.365,0.198 1.188,1.26 1.188,1.708 1.188,1.708 1.406,1.708 false 0.271,0.219 0.646,0.531 0.375,0.313 10 false *a 1.427,1.635 1.771,1.969 0.344,0.333 10 false *b 2.771,1.656 3.083,1.854 0.313,0.198 10 false K4

*a	Component without harness connected (Rear Door Courtesy Light Switch Assembly RH)
*b	Switch Body

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K4)Location & Routingewd_type=routing;type=c;code=K4 Click Connector(K4)Body>Floor Wire>Rear Door Courtesy Light Switch Assembly RHewd_type=component;type=c;code=K4;pinno=1
K4-1 - Switch body	Not pushed (ON)	Below 1 Ω
	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace the rear door courtesy light switch assembly RH.
