LIGHTING (INT)  AMBIENT LIGHT  INSPECTION

1.563,0.167 1.896,0.417 0.333,0.25 1.458,1.833 1.552,1.167 true 1.01,1.74 1.365,1.177 true 2.021,1.823 1.875,1.167 true 2.396,1.76 2.042,1.167 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.427,1.844 1.74,2.042 0.313,0.198 10 false IG 0.927,1.771 1.24,1.969 0.313,0.198 10 false IG 1.896,1.844 2.208,2.042 0.313,0.198 10 false GND 2.281,1.792 2.594,1.99 0.313,0.198 10 false GND 1.625,0.219 2.083,0.417 0.458,0.198 10 false L24

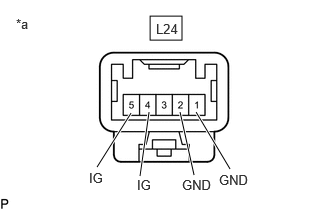

*a	Component without harness connected (Console Box Illumination Light Assembly)

Apply auxiliary battery voltage to the console box illumination light assembly and check that the light illuminates.

OK:

Tester Connection	Specified Condition
Click Location & Routing(L24)Location & Routingewd_type=routing;type=c;code=L24 Click Connector(L24)Instrument Panel>No. 2 Floor Wire>Console Box Illumination Light Assemblyewd_type=component;type=c;code=L24;pinno=4,1,5,2
L24-4 (IG) - Auxiliary battery positive (+) L24-1 (GND) - Auxiliary battery negative (-)	Ambient light illuminates
L24-5 (IG) - Auxiliary battery positive (+) L24-2 (GND) - Auxiliary battery negative (-)

If the result is not as specified, replace the console box illumination light assembly.
