LIGHTING (INT)  AMBIENT LIGHT  REMOVAL

62311B 1.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

55317E 2.REMOVE NO. 1 INSTRUMENT SIDE PANEL

55475A 3.REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

58834B 4.REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

58833B 5.REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

58835C 6.REMOVE CONSOLE BOX ORNAMENT (w/o Seat Heater System)

58835C 7.REMOVE CONSOLE BOX ORNAMENT (w/ Seat Heater System)

33504F 8.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

58804A 9.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

58803C 10.REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

81080K 11.REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

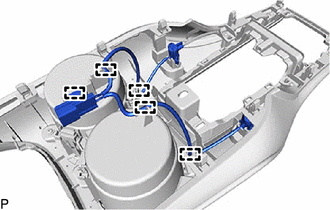

a.

Disengage the 5 clamps.

b.

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws.

1.979,1.344 2.323,1.438 true 5.177,1.385 5.521,1.479 true 5.563,1.396 5.875,1.594 0.313,0.198 10 true *a 2.354,1.365 2.667,1.563 0.313,0.198 10 true *a 0.125,0.083 0.5,0.323 0.375,0.24 12 false *A 3.563,0.083 3.938,0.323 0.375,0.24 12 false *B

*A	for LH Side	*B	for RH Side
*a	Protective Tape	-	-

c.

Disengage the 2 guides to remove the console box illumination light assembly.
