LIGHTING (INT) INSIDE HANDLE LIGHT REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 69278B 1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0001,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0001,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0001,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0001,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0001,

Hide Display 74222A 2.REMOVE FRONT DOOR ARMREST COVER

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0199,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0199,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0199,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0199,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0199,

Hide Display 67602 3.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501457,RM100000001Z65R_01_0005,202203,202303,_59,_111831,_0501457,RM1000000022E7B_01_0005,202303,202406,_59,_111831,_0501457,RM100000002B0QO_01_0005,202406,202409,_59,_111831,_0501457,RM100000002MT7N_01_0005,202409,999999,_59,_111831,_0501457,RM100000002OO32_01_0005,

Hide Display 81080L 4.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

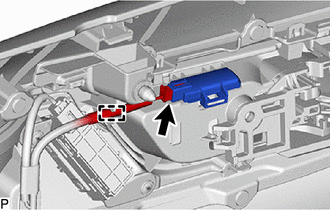

Disconnect the connector.

Disengage the clamp to separate the front door wire.

1.594,1.542 2.01,1.125 true 1.521,1.542 1.833,1.698 0.313,0.156 10 true *a

*a	Protective Tape
	Remove in this Direction

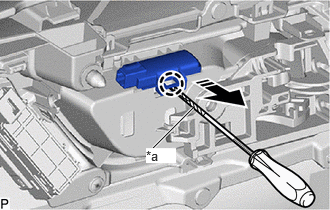

Using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the No. 1 interior illumination light assembly as shown in the illustration.
