RM38N0EC _58 Vehicle Interior _111833 LIGHTING (INT) _0499879 FOOTWELL LIGHT A

LIGHTING (INT) FOOTWELL LIGHT REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH (for Driver Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (for Driver Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Driver Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 81080N 4.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

a.

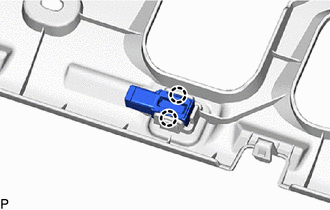

E447267

Disengage the 2 claws to remove the No. 1 interior illumination light assembly.

Hide Display 55607 5.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0026,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0026,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0026,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0026,

Hide Display 81080V 6.REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

a.

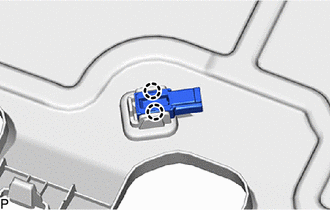

E447268

Disengage the 2 claws to remove the No. 2 interior illumination light assembly.
