RM38N0EC _58 Vehicle Interior _111833 LIGHTING (INT) _0499878 INSTRUMENT PANEL BOX LIGHT A

LIGHTING (INT) INSTRUMENT PANEL BOX LIGHT INSTALLATION

PROCEDURE

Hide Display 81080W 1.INSTALL NO. 3 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

E475223C01

0,0 0,0 false

V113147

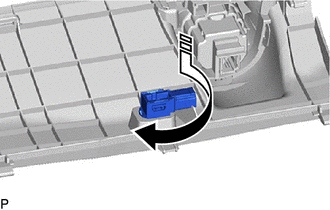

Install in this Direction

Turn the No. 3 interior illumination light assembly as shown in the illustration to install it.

Hide Display 58925B 2.INSTALL UPPER CONSOLE BOX INSULATOR

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0188,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0188,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0188,

Hide Display 55900 3.INSTALL AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>INSTALLATION202111,999999,_58,_111841,_0499807,RM100000001Z0A6,
