RM38N0EC _58 Vehicle Interior _111833 LIGHTING (INT) _0499874 ROOM LIGHT A

LIGHTING (INT)  ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81240 1.INSTALL NO. 1 ROOM LIGHT ASSEMBLY

a.

Connect the connector.


b.

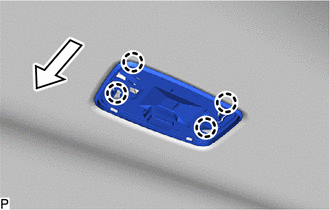

E475217C01
0,0 0,0 false
V100136

Front


Engage the 4 claws to install the room light housing.


c.

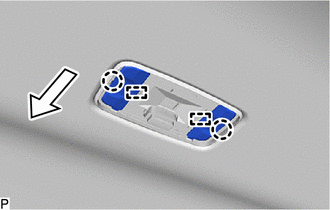

E475215C01
0,0 0,0 false
V100136

Front


Engage the 2 claws and 2 guides to install the 2 inner covers.


d.

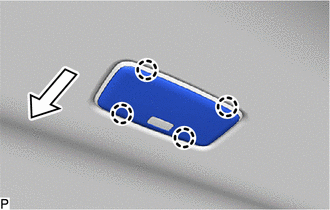

E475213C01
0,0 0,0 false
V100136

Front


Engage the 4 claws to install the room light lens.
