LIGHTING (INT) PERSONAL LIGHT INSPECTION

PROCEDURE

Hide Display 81260A 1.INSPECT MAP LIGHT ASSEMBLY

Measure the resistance according to the value(s) in the table below.

3.417,0.083 3.833,0.333 0.417,0.25 5.552,0.76 5.854,0.469 true 2.292,0.76 2.594,0.469 true 1.969,0.76 2.146,0.417 true 1.802,0.75 1.677,0.417 true 1.625,0.76 1.271,0.51 true 5.823,1.271 5.469,1.021 true 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a 5.75,0.302 6.208,0.5 0.458,0.198 10 false +B1 2.427,0.302 3.01,0.5 0.583,0.198 10 false DOOR 2.042,0.229 2.625,0.427 0.583,0.198 10 false LILL 1.51,0.25 2.094,0.448 0.583,0.198 10 false RLMP 1.083,0.333 1.667,0.531 0.583,0.198 10 false GND 5.75,1.302 6.333,1.5 0.583,0.198 10 false ILLB 3.521,0.135 3.833,0.333 0.313,0.198 10 false Q9

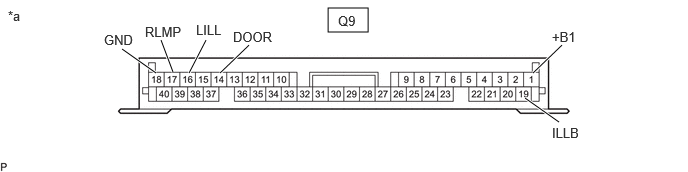

Component without harness connected
(Map Light Assembly)

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=17,18,19,16,14
Q9-17 (RLMP) - Q9-18 (GND)	Dome light switch ON	Below 1 Ω
Q9-19 (ILLB) - Q9-16 (LILL)	Always	Below 1 Ω
Q9-17 (RLMP) - Q9-14 (DOOR)	Door switch off	10 kΩ or higher
Q9-17 (RLMP) - Q9-14 (DOOR)	Door switch on	Below 1 Ω

If the result is not as specified, replace the map light assembly.

Apply auxiliary battery voltage to the map light assembly and check that the lights illuminate.

OK:

Map Light
Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=1,18,14,17
Q9-1 (+B1) - Auxiliary battery positive (+) Q9-18 (GND) - Auxiliary battery negative (-)	Dome light switch off and map light switch LH on	Map light LH illuminates
	Dome light switch off and map light switch RH on	Map light RH illuminates
	Map light switch LH and RH off and dome light switch on	Map light LH and RH come on
Q9-1 (+B1) - Auxiliary battery positive (+) Q9-14 (DOOR) - Auxiliary battery negative (-)	Map light switch LH and RH off and door linked switch on	Map light LH and RH come on
	Map light switch LH and RH off and door linked switch off	Map light LH and RH do not come on
Q9-1 (+B1) - Auxiliary battery positive (+) Q9-17 (RLMP) - Auxiliary battery negative (-)	Map light switch LH and RH off	Map light LH and RH come on
	Map light switch LH and RH on	Map light LH and RH do not come on

OK:

Switch Illumination
Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=19,16
Q9-19 (ILLB) - Auxiliary battery positive (+) Q9-16 (LILL) - Auxiliary battery positive (-)	Always	Switch illumination illuminates

If the result is not as specified, replace the map light assembly.
