LIGHTING (INT)  VANITY LIGHT  INSTALLATION


PROCEDURE

Hide 81340 1.INSTALL VANITY LIGHT ASSEMBLY

a.

Connect the connector.


b.

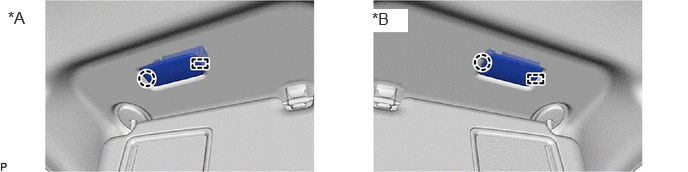

Engage the guide and claw to install the vanity light assembly.

E447243C01
0.083,0.083 0.458,0.323 0.375,0.24 12 true *A 3.875,0.094 4.25,0.333 0.375,0.24 12 true *B
*A for LH Side *B for RH Side
