HEATING / AIR CONDITIONING  AIR CONDITIONING AMPLIFIER  INSTALLATION


PROCEDURE

Hide 88650N 1.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

a.

Connect each connector.


b.

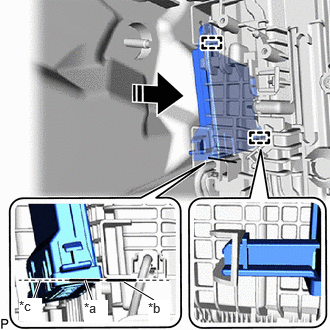

E448146C01
1.604,3.125 1.292,2.938 true 0.958,3.125 0.885,2.917 true 0.344,3.125 0.417,2.917 true 0.875,3.125 1.125,3.365 0.25,0.24 10 true *a 1.542,3.125 1.771,3.375 0.229,0.25 10 true *b 0.198,3.104 0.438,3.344 0.24,0.24 10 true *c
*a Lower Part of Air Conditioning Amplifier Assembly
*b Rib of Air Conditioner Unit Assembly
*c Align
V113147

Install in this Direction


Align the lower part of the air conditioning amplifier assembly with the rib of the air conditioner unit assembly and engage the 2 guides as shown in the illustration.


c.

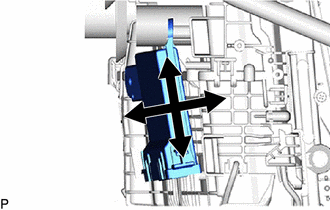

E448147

Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.


d.

Install the air conditioning amplifier assembly with the screw.


e.

Engage the 2 clamps.
