HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL  INSPECTION

1.115,1.479 1.021,1.865 true 2.344,1.479 2.531,1.833 true 0.938,1.906 1.396,2.104 0.458,0.198 10 false ILL- 2.448,1.896 2.906,2.094 0.458,0.198 10 false ILL+ 0.469,0.313 0.781,0.51 0.313,0.198 10 false *a

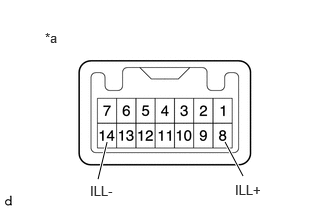

*a	Component without harness connected (Air Conditioning Control Assembly)

Apply auxiliary battery voltage to the air conditioning control assembly and check the illumination.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 8 (ILL+) Auxiliary battery negative (-) → 14 (ILL-)	Illumination illuminates

If the result is not as specified, replace the air conditioning control assembly.
