HEATING / AIR CONDITIONING  AIR CONDITIONING PRESSURE SENSOR  INSTALLATION


PROCEDURE

Hide 88719A 1.INSTALL AIR CONDITIONING PRESSURE SENSOR (for HV Model)

a.

Remove the vinyl tape from the air conditioning tube and accessory assembly and the connecting part of the air conditioning pressure sensor.


b.
E448155

Sufficiently apply compressor oil to a new air conditioning pressure sensor and the fitting surface of the air conditioning pressure sensor.

Compressor Oil:

ND-OIL 11 or equivalent


NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.



c.

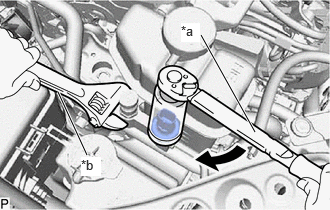

E478235C01
0.906,1.615 0.604,0.958 true 2.656,1.375 2.094,0.365 true 0.844,1.635 1.052,1.833 0.208,0.198 10 true *b 1.885,0.24 2.083,0.438 0.198,0.198 10 true *a
*a Turn
*b Hold


Using a 27 mm deep socket wrench, install the air conditioning pressure sensor as shown in the illustration.

Torque:
10.8 N*m (110 kgf*cm, 8 ft.*lbf)


d.

Connect the connector.


Hide 88719A 2.INSTALL AIR CONDITIONING PRESSURE SENSOR (for Gasoline Model)

a.

Remove the vinyl tape from the air conditioning tube and accessory assembly and the connecting part of the air conditioning pressure sensor.


b.

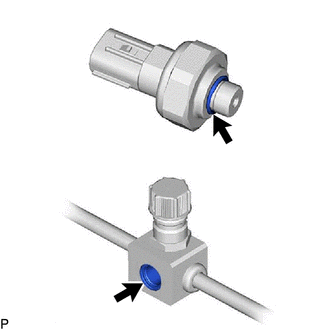

E451861

Sufficiently apply compressor oil to a new air conditioning pressure sensor and the fitting surface of the air conditioning pressure sensor.

Compressor Oil:

ND-OIL 8 or equivalent


NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.



c.

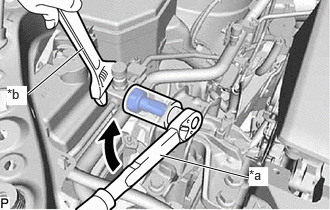

E478238C01
0.292,0.979 0.865,0.5 true 1.667,1.615 2.594,1.854 true 0.073,0.896 0.281,1.094 0.208,0.198 10 true *b 2.594,1.74 2.792,1.938 0.198,0.198 10 true *a
*a Turn
*b Hold


Using a 27 mm deep socket wrench, install the air conditioning pressure sensor as shown in the illustration.

Torque:
10.8 N*m (110 kgf*cm, 8 ft.*lbf)


d.

Connect the connector.
