HEATING / AIR CONDITIONING  AIR CONDITIONING PRESSURE SENSOR  REMOVAL


PROCEDURE

Hide 88719A 2.REMOVE AIR CONDITIONING PRESSURE SENSOR (for HV Model)

a.
E478233

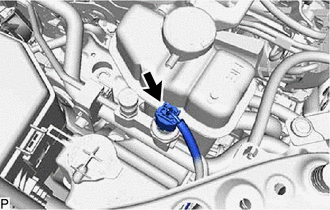

Disconnect the connector.


b.
E478234C01
3.125,1.708 2.76,0.854 true 0.792,0.573 0.323,1.01 true 0.115,0.948 0.323,1.146 0.208,0.198 10 true *b 3.063,1.719 3.271,1.917 0.208,0.198 10 true *a
*a Turn
*b Hold

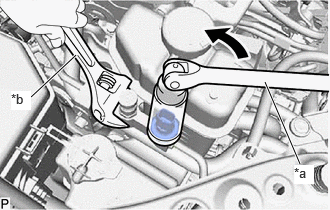

Using a 27 mm deep socket wrench, remove the air conditioning pressure sensor as shown in the illustration.

NOTICE:
·

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.




Hide 88719A 3.REMOVE AIR CONDITIONING PRESSURE SENSOR (for Gasoline Model)

a.
E478236

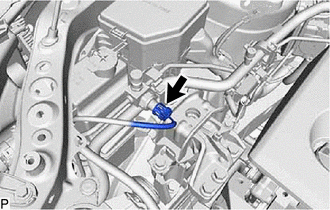

Disconnect the connector.


b.
E478237C01
1.563,1.854 0.469,1.76 true 1.615,0.198 1.052,0.313 true 1.646,0.073 1.854,0.271 0.208,0.198 10 true *b 0.25,1.646 0.458,1.844 0.208,0.198 10 true *a
*a Turn
*b Hold

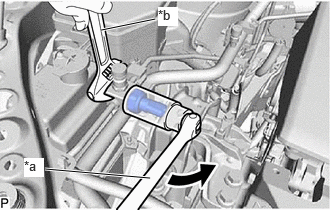

Using a 27 mm deep socket wrench, remove the air conditioning pressure sensor as shown in the illustration.

NOTICE:
·

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
