HEATING / AIR CONDITIONING  FRONT EVAPORATOR TEMPERATURE SENSOR  COMPONENTS

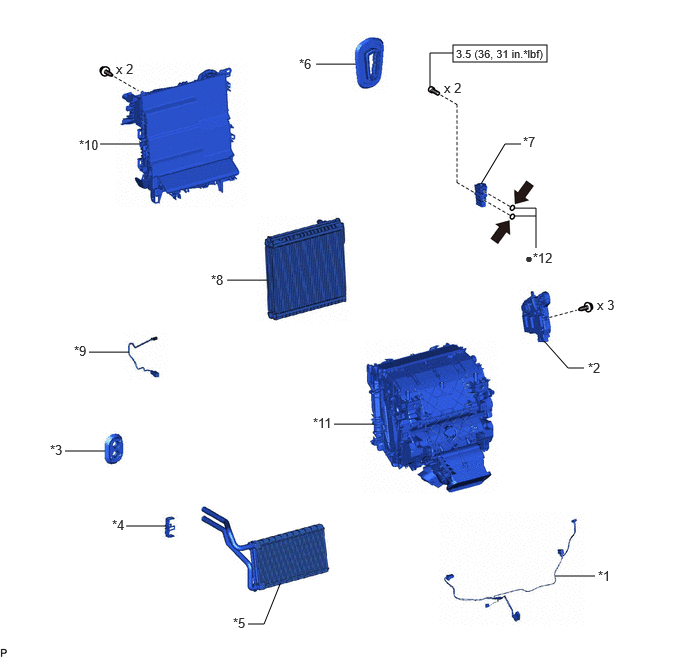

ILLUSTRATION

4.719,0.469 5.698,0.646 0.979,0.177 1.042,1.5 1.458,1.5 false 2.365,2.917 2.781,2.917 false 0.927,3.667 1.344,3.667 false 0.677,4.698 1.094,4.698 false 1.313,5.479 1.729,5.479 false 2.583,6.5 2.75,6.5 2.75,6.5 2.917,6.083 false 3.479,4.417 3.896,4.417 false 3.292,0.667 3.708,0.667 false 5.781,6 6.198,6 false 5.667,3.552 5.917,3.833 5.917,3.833 6.083,3.833 false 5.01,1.917 5.26,1.5 5.26,1.5 5.427,1.5 false 5.354,2.167 5.583,2.167 5.583,2.167 5.583,2.583 false 5.354,2.25 5.583,2.25 false 4.479,0.906 4.479,0.552 4.479,0.552 4.719,0.552 false 6.229,5.917 6.542,6.073 0.313,0.156 10 false *1 5.448,1.396 5.76,1.552 0.313,0.156 10 false *7 3.115,0.583 3.427,0.74 0.313,0.156 10 false *6 1.167,5.385 1.479,5.542 0.313,0.156 10 false *4 0.521,4.604 0.833,4.76 0.313,0.156 10 false *3 2.427,6.406 2.74,6.563 0.313,0.156 10 false *5 6.125,3.75 6.438,3.906 0.313,0.156 10 false *2 2.198,2.833 2.51,2.99 0.313,0.156 10 false *8 0.771,3.573 1.083,3.729 0.313,0.156 10 false *9 0.823,1.427 1.292,1.583 0.469,0.156 10 false *10 3.26,4.323 3.729,4.479 0.469,0.156 10 false *11 5.469,2.604 5.938,2.76 0.469,0.156 10 false ●*12 1.208,0.635 1.667,0.833 0.458,0.198 10 false x 2 6.219,3.094 6.677,3.292 0.458,0.198 10 false x 3 4.625,0.833 5.083,1.031 0.458,0.198 10 false x 2 4.75,0.49 5.813,0.698 1.063,0.208 8 false 3.5 (36, 31 in.*lbf)

*1	AIR CONDITIONING HARNESS ASSEMBLY	*2	NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
*3	HEATER PIPE GROMMET	*4	HEATER CLAMP
*5	HEATER RADIATOR UNIT SUB-ASSEMBLY	*6	COOLING UNIT PARTS
*7	COOLER EXPANSION VALVE	*8	NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
*9	NO. 1 COOLER THERMISTOR	*10	UPPER HEATER CASE
*11	LOWER HEATER CASE	*12	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	for HV Model: Compressor oil ND-OIL 11 or equivalent for Gasoline Model: Compressor oil ND-OIL 8 or equivalent	-	-
