RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499801 ROOM TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING ROOM TEMPERATURE SENSOR REMOVAL

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0001,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0001,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0001,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202111,202203,_58,_111843,_0501311,RM100000001Z5HB_02_0003,202203,202303,_58,_111843,_0501311,RM1000000022FCC_02_0003,202303,202406,_58,_111843,_0501311,RM100000002AMS0_02_0003,202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0006,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0006,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0006,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0006,

Hide Display 58833B 4.REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534_01_0041,

Hide Display 55480D 5.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0104,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0104,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0104,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0104,

Hide Display 88625Q 6.REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

a.

E448176C01

0,0 0,0 false

V113147

Remove in this Direction

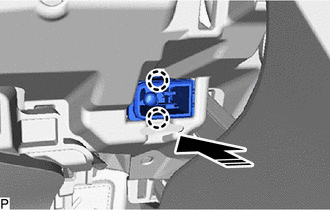

Disengage the 2 claws as shown in the illustration.

b.

E448177

Disconnect the connector and aspirator to remove the cooler (room temp. sensor) thermistor.
