RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499798 COMPRESSOR(for M20C-FKS, M20D-FKS) A

HEATING / AIR CONDITIONING COMPRESSOR(for M20C-FKS, M20D-FKS) INSTALLATION

PROCEDURE

Hide Display 1.ADJUST COMPRESSOR OIL

When replacing the compressor assembly with pulley with a new one, gradually discharge the inert gas (helium) from the service valve, and drain the following amount of oil before installation.

NOTICE:: ·

If a new compressor assembly with pulley is installed without removing the same amount of compressor oil as is remaining in the pipes, the amount of compressor oil will be excessive. This prevents heat exchange in the refrigerant cycle and will cause the air conditioning system to malfunction.

·

A certain amount of compressor oil remains in the compressor assembly with pulley during circulation and the compressor may be damaged if the amount of compressor oil is more/less than this amount. Therefore, make sure to adjust the amount of compressor oil correctly.

·

If the amount of compressor oil remaining in the removed compressor assembly with pulley is excessively low, check for compressor oil leaks.

·

Do not race the engine before replacing the compressor assembly with pulley.

·

Make sure to use ND-OIL 8 or equivalent compressor oil.

0.646,1.823 1.115,0.906 true 0.469,1.76 0.781,1.917 0.313,0.156 10 false *a

*a	Drain Bolt (Seal Washer)

Remove the drain bolt (seal washer) from the removed compressor assembly with pulley.

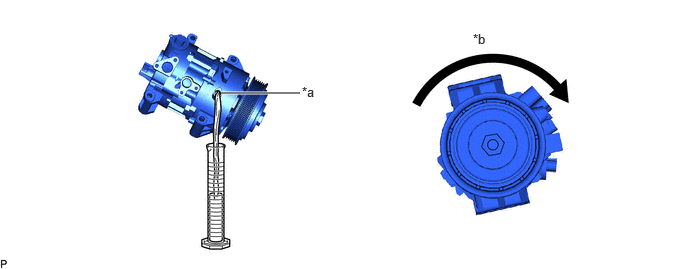

Drain the compressor oil from the oil port of the removed compressor assembly with pulley as shown in the illustration.

NOTICE:: Make sure to drain the compressor oil from the oil port.

2.302,0.969 3.125,0.969 true 3.146,0.875 3.458,1.031 0.313,0.156 10 false *a 4.927,0.323 5.24,0.479 0.313,0.156 10 false *b

Oil Port

Turn Clockwise

0.635,1.813 1.104,0.896 true 0.469,1.76 0.781,1.917 0.313,0.156 10 false *a

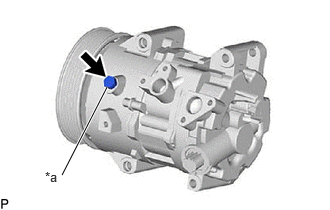

*a	Drain Bolt (Seal Washer)

Remove the drain bolt (seal washer) from a new compressor assembly with pulley.

HINT:: The drain bolt (seal washer) can be reused.

Drain the following amount of compressor oil from the oil port of the new compressor assembly with pulley as shown in the illustration.

Standard:: (The amount of oil in a new compressor assembly with pulley: 70 (+15) cc (2.37 (+0.51) fl.oz)) - (The amount of oil in the removed compressor assembly with pulley) = The amount of oil to be removed from the new compressor assembly with pulley.

NOTICE:: ·

Make sure to drain the compressor oil from the oil port.

·

Make sure to add the compressor oil from the oil port, not from the discharge or intake port.

·

If a tool is used to add compressor oil to the new compressor assembly with pulley, make sure that it is free of foreign matter.

·

If the amount of compressor oil remaining in the removed compressor assembly with pulley cannot be estimated because the compressor was damaged and oil was discharged due to a frontal collision, etc., install a new compressor assembly with pulley without removing any oil. If the cooler condenser assembly is also replaced, do not add the specified amount of compressor oil for cooler condenser assembly replacement (40 cc (1.35 fl.oz)).

2.302,0.969 3.125,0.969 true 3.146,0.875 3.458,1.031 0.313,0.156 10 false *a 4.927,0.323 5.24,0.479 0.313,0.156 10 false *b

Oil Port

Turn Clockwise

Install the drain bolt (seal washer) to the new compressor assembly with pulley.

Torque:: 30 N*m (306 kgf*cm, 22 ft.*lbf)

NOTICE:: Make sure that there is no damage or foreign matter on the seal washer edge.

Hide Display 88310 2.INSTALL COMPRESSOR ASSEMBLY WITH PULLEY

for Type A:

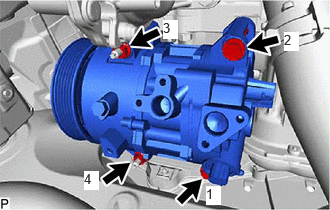

Using an E8 "TORX" socket wrench, temporarily install the compressor assembly with pulley with the 2 stud bolts.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

ii.

1.698,0.208 1.854,0.406 0.156,0.198 10 true 3 2.146,1.938 2.302,2.135 0.156,0.198 10 true 1 2.958,0.333 3.115,0.531 0.156,0.198 10 true 2 0.875,1.781 1.031,1.979 0.156,0.198 10 true 4

Install the compressor assembly with pulley with the 2 bolts and 2 nuts.

Torque:: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

HINT:: Tighten the bolts and nuts in the order shown in the illustration.

for Type B:

2.5,1.781 2.656,1.979 0.156,0.198 10 true 1 2.948,0.385 3.104,0.583 0.156,0.198 10 true 2 0.969,0.354 1.125,0.552 0.156,0.198 10 true 3 0.938,1.885 1.094,2.083 0.156,0.198 10 true 4

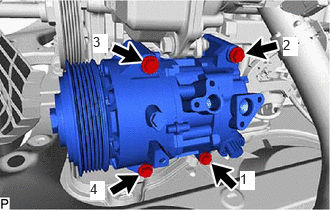

Install the compressor assembly with pulley with the 4 bolts.
