HEATING / AIR CONDITIONING FRONT BLOWER MOTOR REMOVAL

PROCEDURE

Hide Display 55607 1.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0026,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0026,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0026,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0026,

Hide Display 87103B 2.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.

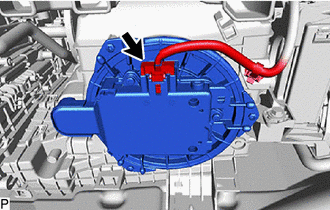

E448487

Disconnect the connector.

b.

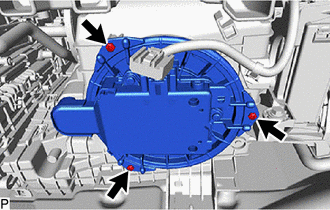

E450140

Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:: Do not reuse the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.
