RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499794 BLOWER UNIT A

HEATING / AIR CONDITIONING  BLOWER UNIT  REASSEMBLY


PROCEDURE

Hide 87130K 1.INSTALL NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

a.

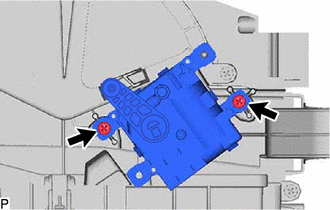

E478195

Install the No. 1 blower damper servo sub-assembly with the 2 screws.


b.

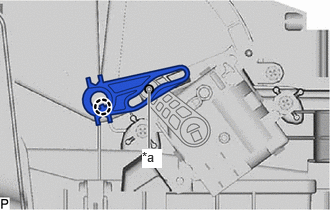

E478194C01
1.552,1.542 1.552,0.958 true 1.479,1.552 1.688,1.75 0.208,0.198 10 true *a
*a Link


Align the groove of the front door lever with the link of the No. 1 blower damper servo sub-assembly as shown in the illustration.


c.

Engage the claw to install the front door lever.


Hide 87103B 2.INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.

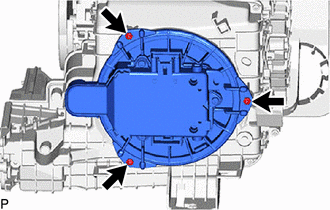

E448496

Install the blower motor with fan sub-assembly with the 3 screws.

NOTICE:

Do not reuse the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.



Hide 87139C 3.INSTALL CLEAN AIR FILTER

a.

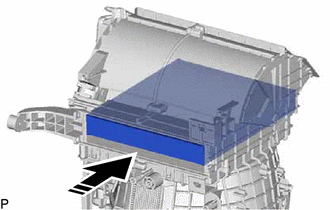

E478192C01
0,0 0,0 false
V113147

Install in this Direction


Install the clean air filter as shown in the illustration.


Hide 88548B 4.INSTALL AIR FILTER CASE

a.

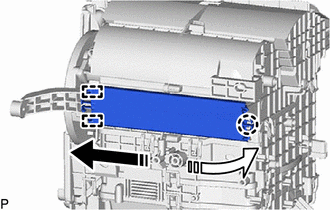

E448493C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 2 guides and claw as indicated by the arrows, in the order shown in the illustration to install the air filter case.
