RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499794 BLOWER UNIT A

HEATING / AIR CONDITIONING  BLOWER UNIT  DISASSEMBLY


PROCEDURE

Hide 88548B 1.REMOVE AIR FILTER CASE

a.

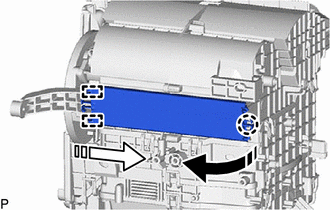

E448492C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the claw and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the air filter case.


Hide 87139C 2.REMOVE CLEAN AIR FILTER

a.

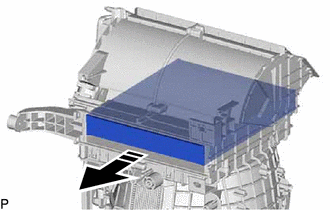

E478191C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clean air filter as shown in the illustration.


Hide 87103B 3.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.
E448496

Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:

Do not reuse the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.



Hide 87130K 4.REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

a.

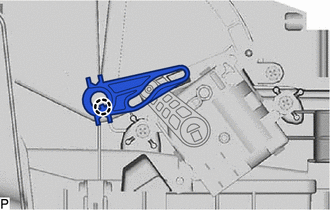

E478193

Disengage the claw and remove the front door lever.


b.
E478195

Remove the 2 screws and No. 1 blower damper servo sub-assembly.
