BLOWER UNIT
K

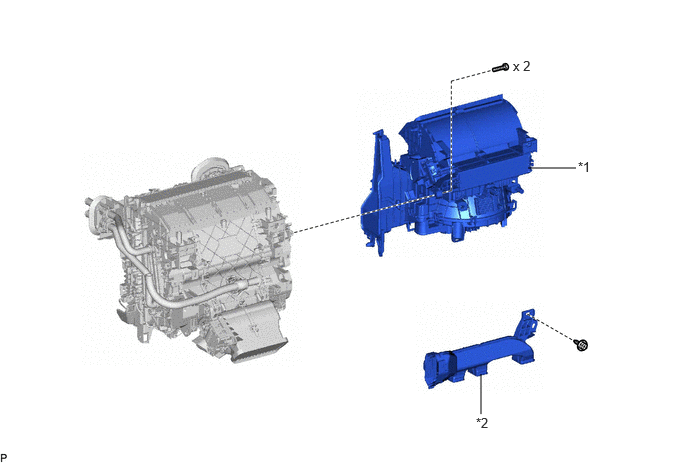

HEATING / AIR CONDITIONING BLOWER UNIT COMPONENTS
ILLUSTRATION
5.5,1.75 6,1.75
false
5.01,3.896 5.01,4.313
false
6.021,1.656 6.333,1.813
0.313,0.156
10
false
*1
4.958,4.323 5.271,4.479
0.313,0.156
10
false
*2
5.344,0.604 5.802,0.802
0.458,0.198
10
false
x 2
| *1 | NO. 1 AIR DUCT | *2 | BLOWER ASSEMBLY |

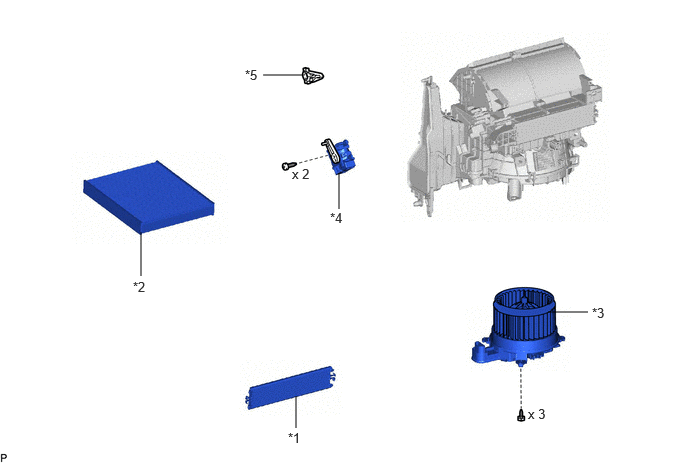

ILLUSTRATION
1.469,2.417 1.469,2.875
false
3.531,1.802 3.531,2.177
false
3.083,4.458 3.083,4.125
false
5.708,3.25 6.125,3.25
false
2.74,0.781 3.156,0.781
false
3,4.479 3.313,4.635
0.313,0.156
10
false
*1
6.167,3.177 6.479,3.333
0.313,0.156
10
false
*3
1.385,2.906 1.698,3.063
0.313,0.156
10
false
*2
3.438,2.188 3.75,2.344
0.313,0.156
10
false
*4
5.5,4.229 5.958,4.427
0.458,0.198
10
false
x 3
3.042,1.729 3.5,1.927
0.458,0.198
10
false
x 2
2.552,0.698 2.865,0.854
0.313,0.156
10
false
*5
| *1 | AIR FILTER CASE | *2 | CLEAN AIR FILTER |
| *3 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *4 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY |
| *5 | FRONT DOOR LEVER | - | - |
