RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499791 REFRIGERANT LINE(for Gasoline Model) A

HEATING / AIR CONDITIONING REFRIGERANT LINE(for Gasoline Model) REMOVAL

PROCEDURE

Hide Display 1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202111,999999,_58,_111841,_0499789,RM100000001Z086_01_0001,

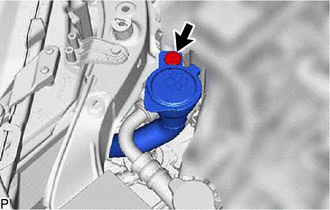

Hide Display 85319E 2.DISCONNECT INLET WASHER

Remove the clip.

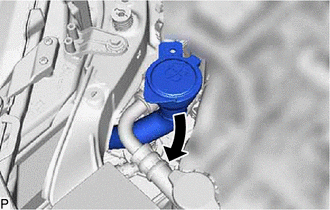

Move the inlet washer as shown in the illustration.

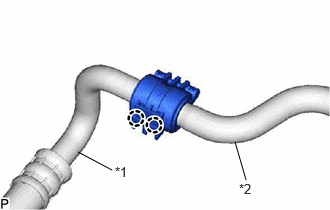

Hide Display 3.REMOVE PIPING CLAMP

0.813,1.583 1.167,1.771 false 2.448,1.479 2.563,1.875 false 1.198,1.708 1.51,1.865 0.313,0.156 10 false *1 2.49,1.885 2.802,2.042 0.313,0.156 10 false *2

*1	Suction Hose Sub-assembly
*2	Suction Pipe Sub-assembly

Disengage the 2 claws and remove the piping clamp.

Disconnect the suction hose sub-assembly from the suction pipe sub-assembly.

NOTICE:: Remove any foreign matter from the connecting parts of the suction hose sub-assembly or suction pipe sub-assembly.

Remove the 2 O-rings from the suction hose sub-assembly.

NOTICE:: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
