K120 / K120F / K121 / K121F CVT  TRANSMISSION WIRE  INSTALLATION


PROCEDURE

Hide 82125M 1.INSTALL TRANSMISSION WIRE

a.
C399161

Coat the O-ring of the transmission wire with Toyota Genuine CVT fluid FE.

NOTICE:

If reusing the transmission wire, check that the O-ring is not damaged.



b.

Coat a new O-ring with Toyota Genuine CVT fluid FE and install it to the temperature sensor.

NOTICE:

Ensure that the O-ring is not twisted.



c.

Install the transmission wire to the transaxle case sub-assembly with the bolt.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


d.

Connect the transmission revolution sensor (NC1) connector.


e.
C413842C01
0,0 0,0 false
V113147

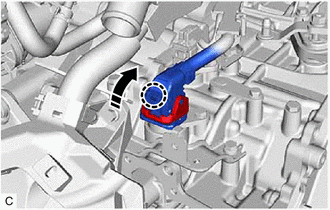

Rotate in this Direction


Connect the transmission wire connector and rotate the lever and engage the claw.

HINT:

Rotate the lever until the claw of the transmission wire connector makes a click sound.
