K120 / K120F / K121 / K121F CVT  SHIFT LEVER KNOB  REMOVAL

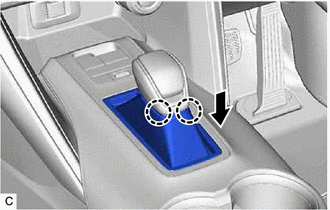

Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

0.802,1.26 0.906,1.073 0.906,1.073 1.094,1.073 true 2.156,1.26 2.156,0.979 true 1.125,0.958 1.396,1.177 0.271,0.219 10 false *a 2.083,1.281 2.323,1.479 0.24,0.198 10 true *b

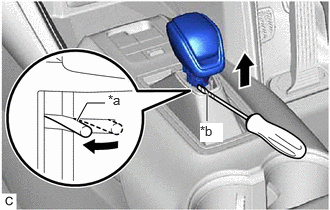

*a	Clip
*b	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.
