K120 / K120F / K121 / K121F CVT  SHIFT LEVER  REASSEMBLY


PROCEDURE

Hide 35974 1.INSTALL LOWER POSITION INDICATOR HOUSING

a.
C475154

Engage the 4 claws and 2 guides to install the lower position indicator housing to the shift lock control unit assembly.

NOTICE:

Do not damage the lower position indicator housing.



Hide 35978 2.INSTALL SHIFT POSITION INDICATOR

a.

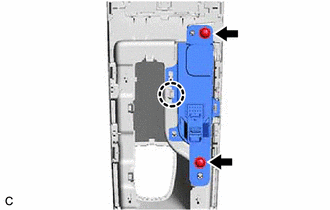

C435298

Engage the claw to install the shift position indicator to the upper console panel sub-assembly.


b.

Install the 2 screws.
