K120 / K120F / K121 / K121F CVT  SHIFT LEVER  COMPONENTS

ILLUSTRATION

4.063,2.604 4.729,2.792 0.667,0.188 5.854,2.396 6.354,2.396 false 3.385,0.323 3.813,0.323 false 0.948,3.271 0.948,2.823 false 2.083,3.26 2.083,2.813 false 3.646,2.698 4.063,2.698 false 3.719,2.708 4.052,2.938 0.333,0.229 10 false x 4 3.854,0.219 4.188,0.479 0.333,0.26 10 false *1 6.406,2.292 6.708,2.531 0.302,0.24 10 false *2 0.885,3.281 1.146,3.563 0.26,0.281 10 false *3 2.021,3.271 2.344,3.51 0.323,0.24 10 false *4 4.115,2.625 4.823,2.823 0.708,0.198 8 false 12 (122, 9)

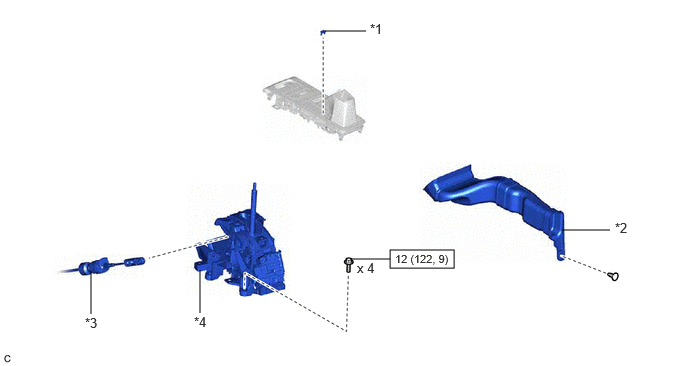

*1	SHIFT LOCK RELEASE BUTTON COVER	*2	NO. 1 CONSOLE BOX DUCT
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	*4	TRANSMISSION FLOOR SHIFT ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

ILLUSTRATION

1.74,1.635 2.198,1.635 false 5.49,1.469 5.948,1.469 false 1.552,1.563 1.844,1.833 0.292,0.271 10 false *1 6,1.375 6.25,1.573 0.25,0.198 10 false *2 2.771,2.385 3.115,2.615 0.344,0.229 10 false x 2

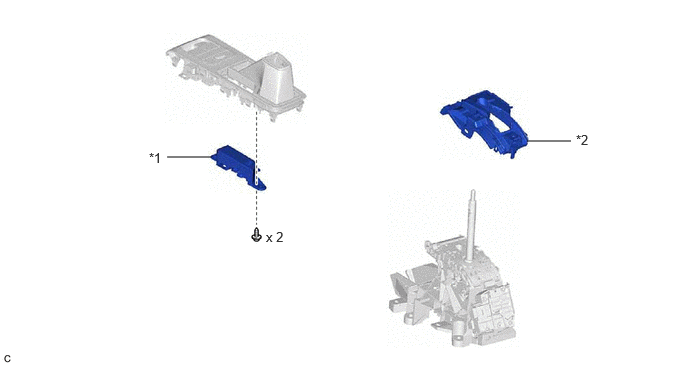

*1

SHIFT POSITION INDICATOR

*2

LOWER POSITION INDICATOR HOUSING
