RM38N0EC _52 Drivetrain _111806 K120 / K120F / K121 / K121F CVT _0499739 SHIFT STROKE SENSOR A

K120 / K120F / K121 / K121F CVT SHIFT STROKE SENSOR REMOVAL

PROCEDURE

Hide Display 12601B 1.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0288,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0288,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0288,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0288,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0288,

Hide Display 17751 2.REMOVE INLET AIR CLEANER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111785,_0503267,RM100000001ZE11_01_0028,

Hide Display 3.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202111,999999,_51,_111785,_0503267,RM100000001ZE11_01_0027,

Hide Display 89419B 4.REMOVE SHIFT STROKE SENSOR

a.

C413817

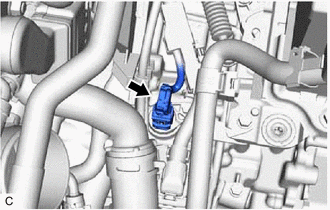

Disconnect the shift stroke sensor connector.

b.

C473058

Remove the bolt and shift stroke sensor from the transaxle case sub-assembly.
