K120 / K120F / K121 / K121F CVT  SHIFT STROKE SENSOR  COMPONENTS

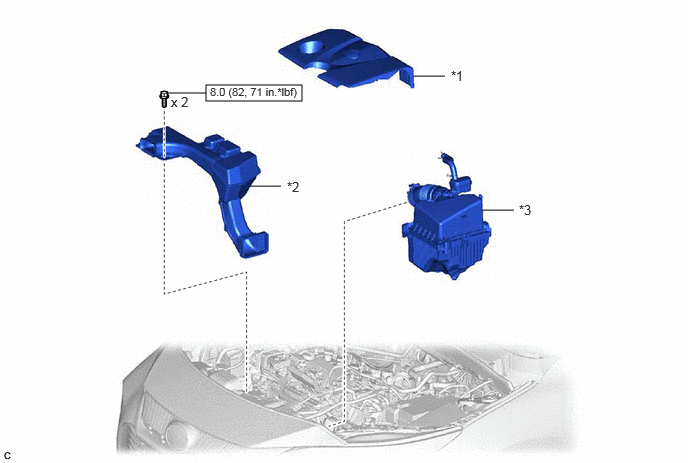

ILLUSTRATION

2.146,0.885 3.146,1.052 1,0.167 1.729,0.969 2.146,0.969 false 5.021,2.188 5.354,2.188 false 4.302,0.792 4.635,0.792 false 2.594,1.938 2.927,1.938 false 4.698,0.708 5.01,0.865 0.313,0.156 10 false *1 2.99,1.865 3.302,2.021 0.313,0.156 10 false *2 5.406,2.104 5.865,2.302 0.458,0.198 10 false *3 1.781,0.979 2.24,1.177 0.458,0.198 10 false x 2 2.188,0.885 3.469,1.198 1.281,0.313 8 false 8.0 (82, 71 in.*lbf)

*1	NO. 1 ENGINE COVER SUB-ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

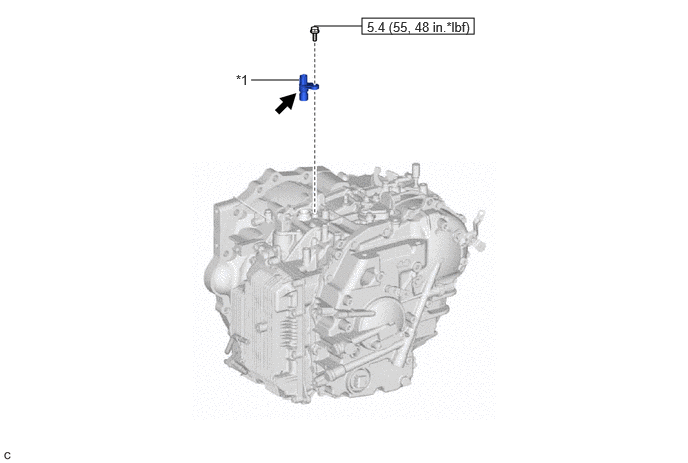

ILLUSTRATION

3.771,0.188 4.938,0.354 1.167,0.167 3.271,0.271 3.771,0.271 false 2.615,0.833 3.115,0.833 false 3.823,0.198 5.094,0.417 1.271,0.219 10 false 5.4 (55, 48 in.*lbf) 2.458,0.75 2.771,0.948 0.313,0.198 10 false *1

*1	SHIFT STROKE SENSOR	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		Toyota Genuine CVT Fluid FE
