K120 / K120F / K121 / K121F CVT  REVOLUTION SENSOR(NSS SENSOR)  COMPONENTS

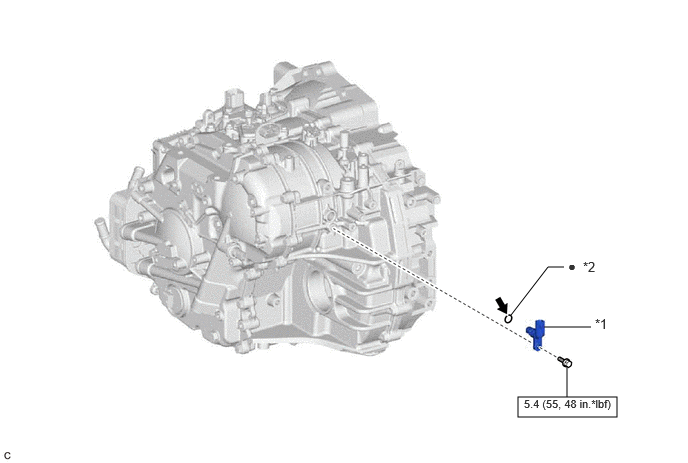

ILLUSTRATION

5.396,4.135 6.427,4.344 1.031,0.208 5.906,3.813 5.906,4.135 false 5.667,3.406 6.156,3.406 false 5.323,3.281 5.708,2.781 5.708,2.781 5.875,2.781 false 6.198,3.292 6.5,3.49 0.302,0.198 10 false *1 6.073,2.698 6.365,2.906 0.292,0.208 10 false *2 5.917,2.688 6.146,2.927 0.229,0.24 10 false ● 5.458,4.135 6.49,4.333 1.031,0.198 8 false 5.4 (55, 48 in.*lbf)

*1	TRANSMISSION REVOLUTION SENSOR (NSS)	*2	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine CVT Fluid FE	-	-
