K120 / K120F / K121 / K121F CVT REVOLUTION SENSOR(NT SENSOR) REMOVAL

PROCEDURE

Hide Display 53737B 1.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0141,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0141,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0141,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0141,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0141,

Hide Display 89413N 2.REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

a.

C413803

Disconnect the transmission revolution sensor (NT) connector.

b.

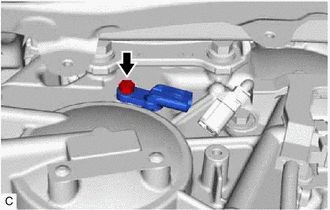

C413804

Remove the bolt and transmission revolution sensor (NT) from the rear transaxle case sub-assembly.

c.

C395501

Remove the O-ring from the transmission revolution sensor (NT).
