K120 / K120F / K121 / K121F CVT  REVOLUTION SENSOR(NT SENSOR)  COMPONENTS

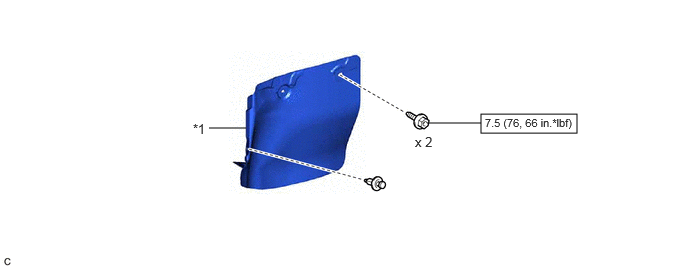

ILLUSTRATION

5.01,1.188 6.01,1.385 1,0.198 2.177,1.333 2.563,1.333 false 4.448,1.281 5.01,1.281 false 2.01,1.26 2.396,1.688 0.385,0.427 10 false *1 4.323,1.396 4.781,1.594 0.458,0.198 10 false x 2 5.052,1.208 6.406,1.365 1.354,0.156 8 false 7.5 (76, 66 in.*lbf)

*1	FRONT FENDER APRON SEAL LH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

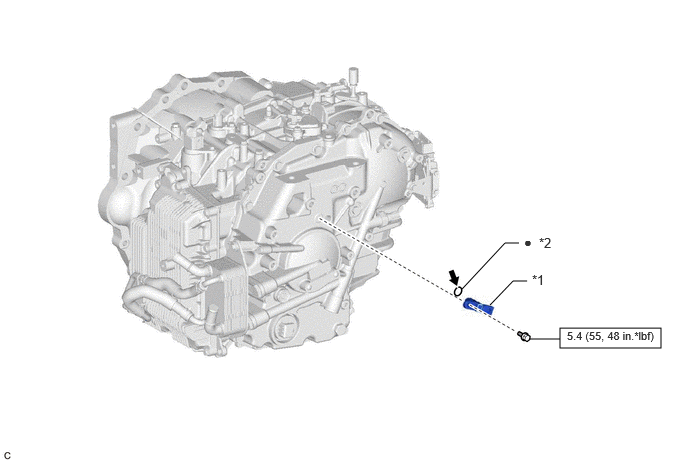

ILLUSTRATION

5.833,3.417 6.885,3.625 1.052,0.208 4.813,3.01 5.26,2.531 5.26,2.531 5.406,2.531 false 5.51,3.531 5.833,3.531 false 5.104,3.177 5.344,2.927 5.344,2.927 5.49,2.927 false 5.542,2.833 5.823,3.104 0.281,0.271 10 false *1 5.615,2.448 5.917,2.677 0.302,0.229 10 false *2 5.458,2.438 5.688,2.677 0.229,0.24 10 false ● 5.906,3.427 6.938,3.625 1.031,0.198 8 false 5.4 (55, 48 in.*lbf)

*1	TRANSMISSION REVOLUTION SENSOR (NT)	*2	O-RING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Toyota Genuine CVT Fluid FE	-	-
