SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  TERMINALS OF ECU

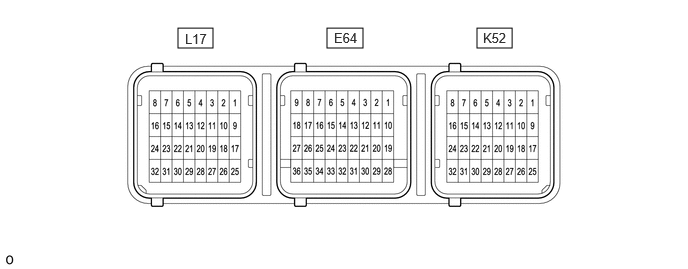

AIRBAG SENSOR ASSEMBLY

1.854,0.292 2.219,0.5 0.365,0.208 3.406,0.292 3.781,0.5 0.375,0.208 4.969,0.292 5.333,0.5 0.365,0.208 3.479,0.313 3.885,0.688 0.406,0.375 10 false E64 1.927,0.323 2.302,0.625 0.375,0.302 10 false L17 5.031,0.313 5.438,0.688 0.406,0.375 10 false K52

Terminal No.	Terminal Symbol	Destination
*1: for HV Model 2WD *2: for HV Model AWD
L17-3	PLR-	Rear seat outer belt assembly LH
L17-4	PLR+
L17-5	PL+	Front seat outer belt assembly LH
L17-6	PL-
L17-7	ICL-	Curtain shield airbag assembly LH
L17-8	ICL+
L17-15	SFL-	Front seat airbag assembly LH
L17-16	SFL+
L17-28	BCL+	Floor side airbag sensor LH
L17-29	BCL-
L17-31	BBL-	Side airbag pressure sensor LH
L17-32	BBL+
E64-3	P-	Instrument panel passenger airbag assembly
E64-4	P+
E64-6	D+	Driver squib (Horn button assembly)
E64-7	D-
E64-8	D2-	Driver squib 2nd step (Horn button assembly)
E64-9	D2+
E64-12	DK-	Lower No. 1 instrument panel airbag assembly
E64-13	DK+
E64-23	GSW3	Telematics transceiver
E64-24	GSW2	Hybrid vehicle control ECU*1
		Inverter with converter assembly*2
E64-25	GSW	Main body ECU (Multiplex network body ECU)
E64-26	CAFH	CAN communication line
E64-27	CAFL
E64-28	-SR	Front airbag sensor RH
E64-29	+SR
E64-30	+SL	Front airbag sensor LH
E64-31	-SL
E64-32	E2	Ground
E64-33	E1
E64-36	IGR	A/BAG-IGR fuse
K52-1	ICR+	Curtain shield airbag assembly RH
K52-2	ICR-
K52-3	PR-	Front seat outer belt assembly RH
K52-4	PR+
K52-5	PRR+	Rear seat outer belt assembly RH
K52-6	PRR-
K52-9	SFR+	Front seat airbag assembly RH
K52-10	SFR-
K52-25	BBR-	Side airbag pressure sensor RH
K52-26	BBR+
K52-28	BCR+	Floor side airbag sensor RH
K52-29	BCR-
