WINDOW / GLASS REAR POWER WINDOW SWITCH INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 84810D 1.INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

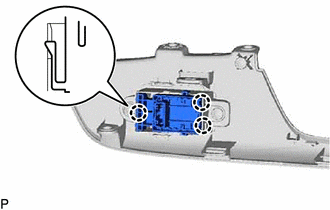

Engage the 3 claws to install the rear power window regulator switch assembly.

Connect the connector.

Hide Display 2.INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Hide Display 67604 3.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

Hide Display 74222C 4.INSTALL REAR DOOR ARMREST COVER

Hide Display 69288A 5.INSTALL REAR DOOR INSIDE HANDLE BEZEL
