RM38N0EC _59 Vehicle Exterior _111844 WINDOW / GLASS _0499614 FRONT PASSENGER SIDE POWER WINDOW SWITCH A

WINDOW / GLASS  FRONT PASSENGER SIDE POWER WINDOW SWITCH  INSTALLATION


PROCEDURE

Hide 84810 1.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

a.

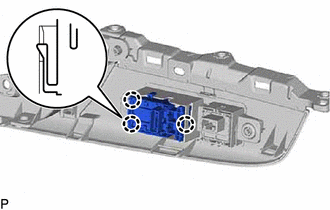

B588810

Engage the 3 claws to install the power window regulator switch assembly.


Hide 2.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY

Hide 67601 3.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY


Hide 74221A 4.INSTALL FRONT DOOR ARMREST COVER RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY


Hide 69277E 5.INSTALL FRONT DOOR INSIDE HANDLE BEZEL RH

HINT:

Use the same procedure as for the LH side.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY
