WINDOW / GLASS  POWER WINDOW MASTER SWITCH  INSPECTION


PROCEDURE

Hide 84040 1.INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

a.

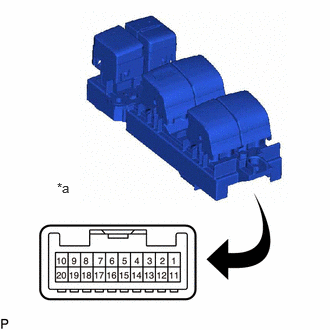

B588808C01
0.594,1.875 0.906,2.031 0.313,0.156 10 false *a
*a Component without harness connected
(Multiplex Network Master Switch Assembly)


Check that the LEDs illuminate.

i.

Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LEDs illuminate.

OK:
Battery Connection Specified Condition
Auxiliary battery positive (+) → 3
Auxiliary battery negative (-) → 13 		LEDs illuminate


If the result is not as specified, replace the multiplex network master switch assembly.
