RM38N0EC _59 Vehicle Exterior _111868 ACOUSTIC VEHICLE ALERTING SYSTEM _0499574 VEHICLE APPROACHING SPEAKER A

ACOUSTIC VEHICLE ALERTING SYSTEM VEHICLE APPROACHING SPEAKER REMOVAL

PROCEDURE

Hide Display 53510 1.REMOVE HOOD LOCK ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY>REMOVAL202111,999999,_59,_111831,_0501456,RM100000001Z65M_01_0105,

Hide Display 16681A 2.REMOVE UPPER RADIATOR AIR GUIDE PLATE

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>REMOVAL202111,202303,_95,_111850,_0502179,RM100000001Z95I_01_0020,202303,999999,_95,_111850,_0502179,RM10000000292O4_01_0020,

Hide Display 86570 3.REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

a.

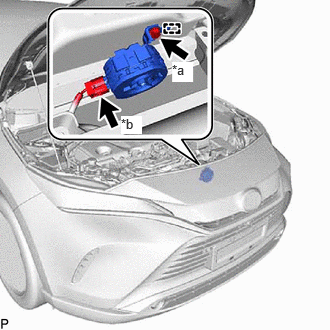

E477434C01

1.792,0.646 2.01,0.854 0.219,0.208 10 true *a 1.26,1.208 1.479,1.396 0.219,0.188 10 true *b

*a	Bolt
*b	Connector

Remove the bolt.

b.

Disengage the guide.

c.

Disconnect the connector to remove the vehicle approaching speaker assembly.
