RM38N0EC _59 Vehicle Exterior _111868 ACOUSTIC VEHICLE ALERTING SYSTEM _0499573 VEHICLE APPROACHING SPEAKER ECU A

ACOUSTIC VEHICLE ALERTING SYSTEM VEHICLE APPROACHING SPEAKER ECU REMOVAL

PROCEDURE

Hide Display 89981 1.REMOVE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL202111,202203,_51,_111804,_0501637,RM100000001Z73M,202203,202303,_51,_111804,_0501637,RM1000000022IYY,202303,202406,_51,_111804,_0501637,RM100000002BJD5,202406,999999,_51,_111804,_0501637,RM100000002MPVI,

Hide Display 86572 2.REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

a.

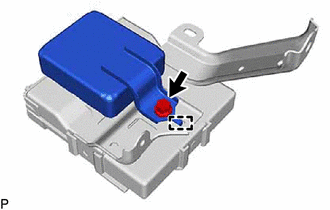

E449010

Remove the bolt.

b.

Disengage the guide to remove the vehicle approaching speaker controller.
