ACOUSTIC VEHICLE ALERTING SYSTEM ACOUSTIC VEHICLE ALERTING SYSTEM TERMINALS OF ECU
CHECK VEHICLE APPROACHING SPEAKER CONTROLLER
3.302,0.094 3.854,0.354
0.552,0.26
3.458,0.146 4.177,0.375
0.719,0.229
10
false

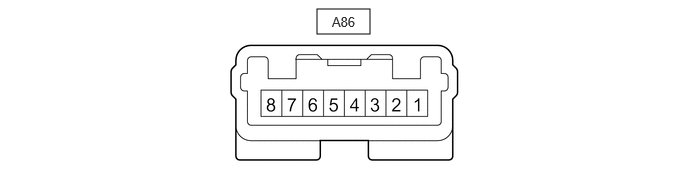

A86
a.
Disconnect the A86 vehicle approaching speaker controller connector.
b.
Measure the voltage and resistance according to the value(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A86-1 (IG) - Body ground | IG power supply | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| A86-6 (GND) - Body ground | Ground | Always | Below 1 Ω |
c.
Connect the A86 vehicle approaching speaker controller connector.
d.
Check the signal waveform and check for pulses according to the condition(s) in the table below.
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| A86-7 (SP+) - A86-8 (SP-) | Vehicle approaching speaker assembly output | Vehicle approaching speaker assembly operating | A waveform synchronized with the sound is output.
(See Waveform) |
| A86-3 (CANH) - A86-6 (GND) | CAN communication line | Ignition switch ON | Pulse generation |
| A86-4 (CANL) - A86-6 (GND) | CAN communication line | Ignition switch ON | Pulse generation |
i.
Waveform
| Item | Condition |
|---|---|
| Tester Connection | A86-7 (SP+) - A86-8 (SP-) |
| Tool Setting | 1 V/DIV., 500 ms./DIV. |
| Condition | Vehicle approaching speaker assembly operating |
