HORN  HORN  INSPECTION

1.427,0.385 2.083,0.25 false 1.198,1.26 1.448,1.51 true 0.104,0.094 0.406,0.344 0.302,0.25 10 false *a 2.167,0.167 2.479,0.323 0.313,0.156 10 false *b 1.479,1.458 1.979,1.646 0.5,0.188 10 false 1

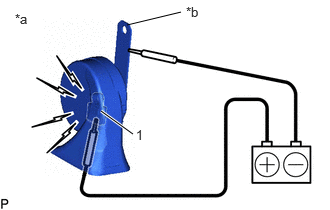

*a	Component without harness connected (High Pitched Horn Assembly)
*b	Body Ground

Apply auxiliary battery voltage and check the operation of the high pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the high pitched horn assembly.

1.385,1.396 1.052,1.156 true 1.885,0.125 1.323,0.26 false 1.417,1.323 2.031,1.521 0.615,0.198 10 false 1 1.938,0.042 2.208,0.271 0.271,0.229 10 false *b 0.156,0.115 0.427,0.344 0.271,0.229 10 false *a

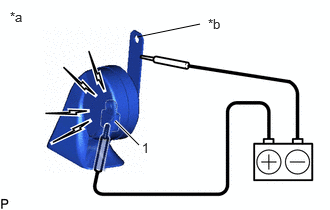

*a	Component without harness connected (Low Pitched Horn Assembly)
*b	Body Ground

Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Body ground	Horn sounds

If the result is not as specified, replace the low pitched horn assembly.
