HORN  HORN  REMOVAL

17750A 1.REMOVE INLET AIR CLEANER ASSEMBLY (for Gasoline Model)

53510 2.REMOVE HOOD LOCK ASSEMBLY

16681A 3.REMOVE UPPER RADIATOR AIR GUIDE PLATE

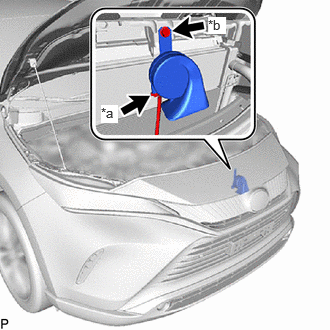

86510 4.REMOVE HIGH PITCHED HORN ASSEMBLY

a.

1.76,0.281 1.958,0.458 0.198,0.177 10 true *b 0.646,1.021 0.833,1.208 0.188,0.188 10 true *a

*a	Connector
*b	Bolt

Disconnect the connector.

b.

Remove the bolt and high pitched horn assembly.

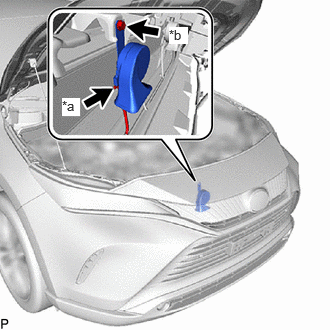

86520 5.REMOVE LOW PITCHED HORN ASSEMBLY

a.

1.052,1.094 1.229,1.281 0.177,0.188 10 true *a 2.167,0.177 2.354,0.354 0.188,0.177 10 true *b

*a	Connector
*b	Bolt

Disconnect the connector.

b.

Remove the bolt and low pitched horn assembly.
