ACOUSTIC VEHICLE ALERTING SYSTEM  VEHICLE APPROACHING SPEAKER ECU  INSTALLATION

NOTICE:

·

When installing the vehicle approaching speaker controller, take care not to damage it.

·

Do not reuse a vehicle approaching speaker controller that has been dropped or subjected to a strong shock.

·

Be sure to connect the connector securely.

a.

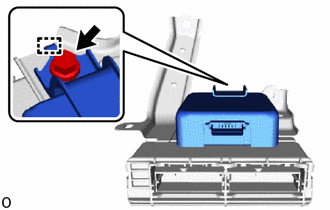

Attach the guide and install the vehicle approaching speaker controller with the bolt.

Torque:

12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>INSTALLATION202409,999999,_51,_083048,_0400692,RM100000002NNMA,

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202409,999999,_V1,_083041,_0402304,RM100000002NY03,
