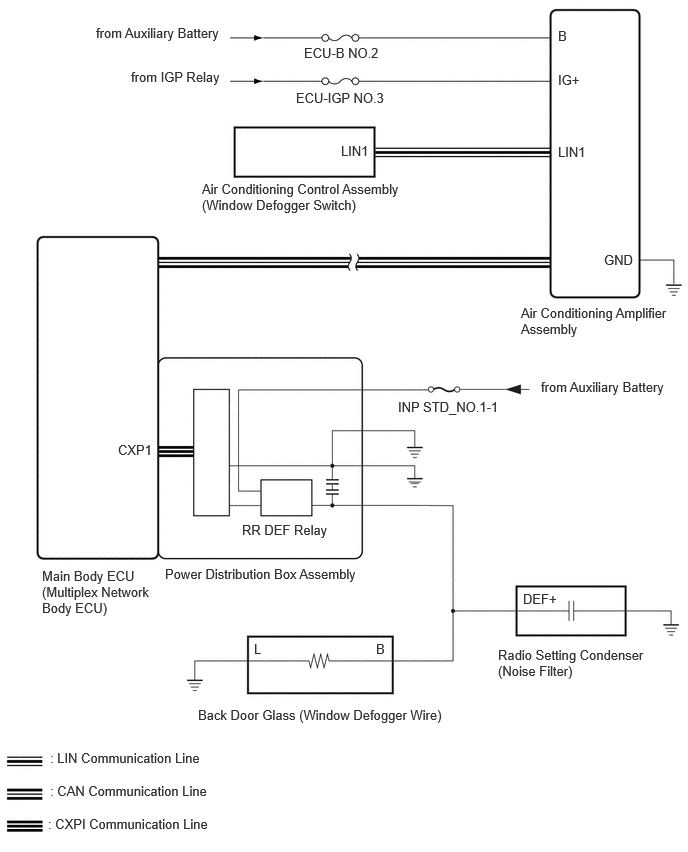

WINDOW / GLASS  WINDOW DEFOGGER SYSTEM  SYSTEM DIAGRAM

5.635,3.948 7.01,4.188 1.375,0.24 10 false from Auxiliary Battery 2.104,1.885 4.198,2.25 2.094,0.365 10 false Air Conditioning Control Assembly (Window Defogger Switch) 4.146,4.156 5.25,4.375 1.104,0.219 10 false INP STD_NO.1-1 5.813,1.5 6.24,1.729 0.427,0.229 10 false LIN1 0.521,7.813 2.292,8.031 1.771,0.219 10 false : LIN Communication Line 2.063,7.365 4.688,7.615 2.625,0.25 10 false Back Door Glass (Window Defogger Wire) 2.521,5.438 3.479,5.656 0.958,0.219 10 false RR DEF Relay 3.552,1.49 3.979,1.719 0.427,0.229 10 false LIN1 5.427,3.177 6.99,3.563 1.563,0.385 10 false Air Conditioning Amplifier Assembly 5.188,6.74 6.76,7.135 1.573,0.396 10 false Radio Setting Condenser (Noise Filter) 5.448,6.156 6.063,6.354 0.615,0.198 10 false DEF+ 3.917,6.677 4.073,6.875 0.156,0.198 10 false B 2.646,6.677 2.802,6.875 0.156,0.198 10 false L 6.292,2.625 6.75,2.823 0.458,0.198 10 false GND 1,0.26 2.406,0.5 1.406,0.24 10 false from Auxiliary Battery 1.365,0.719 2.385,0.917 1.021,0.198 10 false from IGP Relay 3.167,0.469 4.063,0.698 0.896,0.229 10 false ECU-B NO.2 3.083,0.938 4.167,1.115 1.083,0.177 10 false ECU-IGP NO.3 5.813,0.292 5.969,0.49 0.156,0.198 10 false B 5.813,0.75 6.271,0.948 0.458,0.198 10 false IG+ 1.719,5.896 3.813,6.104 2.094,0.208 10 false Power Distribution Box Assembly 1.229,4.604 1.844,4.802 0.615,0.198 10 false CXP1 0.438,5.917 1.583,6.448 1.146,0.531 10 false Main Body ECU (Multiplex Network Body ECU) 0.5,8.5 2.229,8.698 1.729,0.198 10 false : CXPI Communication Line 0.521,8.156 2.292,8.375 1.771,0.219 10 false : CAN Communication Line

Communication Table

Transmitter	Receiver	Signal	Communication Method
Air Conditioning Control Assembly	Air Conditioning Amplifier Assembly	Window defogger switch signal	LIN
Air Conditioning Amplifier Assembly	Main Body ECU (Multiplex Network Body ECU)	Window defogger operation signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Power Distribution Box Assembly	Window defogger operation signal	CXPI
