M20D-FKS ENGINE CONTROL ENGINE COOLANT TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of engine coolant temperature sensor	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202409,999999,_51,_083058,_0401834,RM100000002NA8M,)

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20D-FKS COOLANT>REPLACEMENT201910,999999,_V1,_083136,_0403615,RM100000001JU0H_02_0001,

Hide Display 2.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

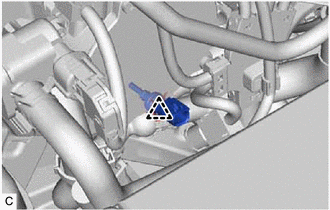

Hide Display 89422A 3.REMOVE ENGINE COOLANT TEMPERATURE SENSOR

Disconnect the engine coolant temperature sensor connector.

Remove the clip and engine coolant temperature sensor from the water outlet.

NOTICE:: If the engine coolant temperature sensor has been struck or dropped, replace it.
