HYBRID / BATTERY CONTROL  HYBRID CONTROL SYSTEM  Drive Start Control


DESCRIPTION

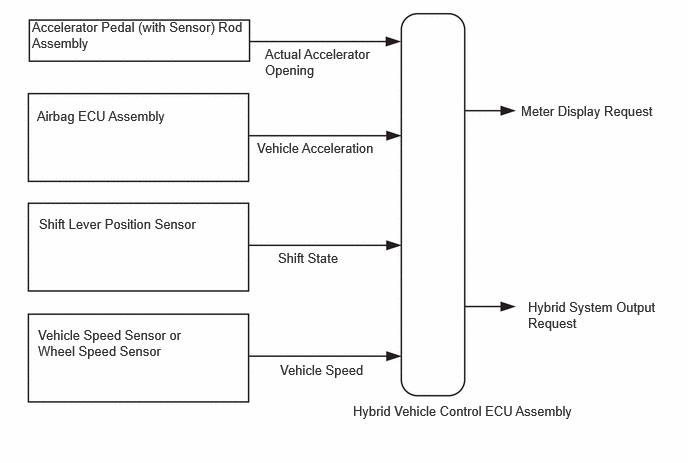

The drive start control is controlled by the hybrid vehicle control ECU assembly.

If the hybrid vehicle control ECU assembly determines that the shift lever and accelerator pedal are operated abnormally, hybrid system output is restricted and, when necessary, a warning is displayed on the combination meter assembly.

C498425E04
0.333,0.198 2.563,0.719 2.229,0.521 10 false Accelerator Pedal (with Sensor) Rod Assembly 0.406,2.25 2.573,2.885 2.167,0.635 10 false Shift Lever Position Sensor 0.396,3.406 1.979,3.813 1.583,0.406 10 false Vehicle Speed Sensor or Wheel Speed Sensor 2.917,3.771 4.031,4.125 1.115,0.354 10 false Vehicle Speed 2.896,2.604 4.26,2.875 1.365,0.271 10 false Shift State 2.76,0.479 3.938,0.854 1.177,0.375 10 false Actual Accelerator Opening 5.427,1.073 7.052,1.667 1.625,0.594 10 false Meter Display Request 5.5,3.115 6.896,3.469 1.396,0.354 10 false Hybrid System Output Request 3.677,4.198 6.198,4.604 2.521,0.406 10 false Hybrid Vehicle Control ECU Assembly 0.385,1.125 1.979,1.354 1.594,0.229 10 false Airbag ECU Assembly 2.677,1.458 3.99,1.667 1.313,0.208 10 false Vehicle Acceleration

CAUTION / NOTICE / HINT

HINT:

Even if the accelerator pedal position is maintained, the hybrid system output may increase when driving uphill and decrease when driving downhill. This is due to drive start control controlling the hybrid system output, and is not a malfunction.


PROCEDURE

1.PAST ACTIVATION CONFIRMATION
a.

Check if the customer operated the vehicle in a way that would cause the drive start control to operate.

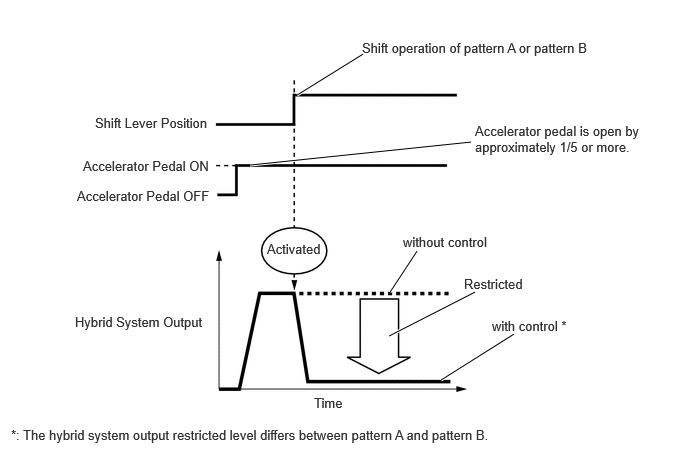

Activation conditions
·

Pattern A (When all of the following conditions are met, control starts.)

-

The accelerator pedal is open by approximately 1/5 or more.

-

The shift lever is moved from P to any forward position D (Including other forward shift positions) or R.


·

Pattern B (When all of the following conditions are met, control starts.)

-

The accelerator pedal is open by approximately 1/5 or more.

-

The shift lever is moved from R to any forward position D (Including other forward shift positions), any forward position D (Including other forward shift positions) to R, or N to R.



HINT:

Depending on the situation, the shift position may not be changed.


A396026E97
4.594,3.958 5.354,3.479 true 4.052,3.5 4.948,3.042 true 4.063,3.042 4.344,2.615 true 2.604,1.719 4.906,1.479 true 3.094,0.99 3.781,0.563 true 3.271,4.115 3.885,4.313 0.615,0.198 10 false Time 5.125,3.313 6.5,3.563 1.375,0.25 10 false with control * 4.198,2.438 5.188,2.708 0.99,0.271 10 false without control 4.833,2.875 5.604,3.167 0.771,0.292 10 false Restricted 2.781,2.51 3.365,2.771 0.583,0.26 10 false Activated 0.781,3.271 2.25,3.625 1.469,0.354 10 false Hybrid System Output 0.99,1.198 2.26,1.542 1.271,0.344 10 false Shift Lever Position 0.802,1.958 2.25,2.25 1.448,0.292 10 false Accelerator Pedal OFF 4.948,1.281 6.833,1.938 1.885,0.656 10 false Accelerator pedal is open by approximately 1/5 or more. 3.771,0.417 6.302,0.76 2.531,0.344 10 false Shift operation of pattern A or pattern B 0.865,1.646 2.25,1.979 1.385,0.333 10 false Accelerator Pedal ON 0.115,4.448 6.042,4.771 5.927,0.323 10 false *: The hybrid system output restricted level differs between pattern A and pattern B.

Items Controlled
·

Hybrid system output is restricted.


Deactivation Conditions
·

The accelerator pedal is released.

·

The shift lever is in P or N.


HINT:
·

The hybrid system output restricted level differs between Pattern A and Pattern B.

·

During sudden start restraint control, hybrid system output is adjusted based on the road gradient.

·

Drive start control is not activated when TRC is turned off.

Control will also not operate under the following conditions. (if equipped)

*

When TRAIL mode is on

*

When multi-terrain select is selected






Result:
Result Proceed to
Not performed A
Performed B



A

2.CHECK DTC OUTPUT (HEALTH CHECK)

B

SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PROBLEM SYMPTOMS TABLE


2.CHECK DTC OUTPUT (HEALTH CHECK)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: System Select / Health Check.


e.

Check the DTCs.


f.

Turn the power switch off.


Result:
Result Proceed to
DTCs are not output A
DTC is output B



A

3.READ VALUE USING GTS (FR, FL, RR, RL WHEEL SPEED)

B

GO TO DTC CHART

3.READ VALUE USING GTS (FR, FL, RR, RL WHEEL SPEED)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (READY).


c.

Turn the GTS on.


d.

Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / FR Wheel Speed, FL Wheel Speed, RR Wheel Speed and RL Wheel Speed.

Chassis > ABS/VSC/TRC > Data List
Tester Display
FR Wheel Speed
FL Wheel Speed
RR Wheel Speed
RL Wheel Speed
50003 105 1,2,3,4

e.

Read the values displayed on the GTS.

Standard:
Tester Display Condition Specified Condition
FR Wheel Speed
FL Wheel Speed
RR Wheel Speed
RL Wheel Speed 		Vehicle stopped 0 km/h (0 mph)
Vehicle being driven at constant speed between 16 to 64 km/h (10 to 40 mph) No large fluctuations when driving at a constant speed


CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



f.

Turn the power switch off.


Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (VEHICLE SPEED)

NG

INSPECT FRONT OR REAR SPEED SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


4.READ VALUE USING GTS (VEHICLE SPEED)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (READY).


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Hybrid Control / Data List / Vehicle Speed.

Powertrain > Hybrid Control > Data List
Tester Display
Vehicle Speed
50003 397 12

e.

Read the value of "Vehicle Speed" displayed on the GTS.

Standard:
Inspection Condition Specified Condition
Vehicle stopped 0 km/h (0 mph)
Vehicle being driven at a constant speed
(16 to 64 km/h (10 to 40 mph)) 		No large fluctuations in displayed speed


CAUTION:

Perform this road test only in an appropriate safe location, in accordance with all local laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



f.

Turn the power switch off.


Result:
Proceed to
OK
NG



OK

5.READ VALUE USING GTS (FORWARD AND REARWARD G)

NG

INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


5.READ VALUE USING GTS (FORWARD AND REARWARD G)
a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (READY).


c.

Turn the GTS on.


d.

Enter the following menus: Chassis / Brake/EPB / Data List / Forward and Rearward G.

Chassis > Brake/EPB > Data List
Tester Display
Forward and Rearward G
50003 435 26

e.

Read the value displayed on the GTS.

Standard:
Condition Specified Condition
During deceleration Value changes with vehicle speed
During acceleration Value changes with vehicle speed


CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

Data can be captured relatively easily by using the snapshot function in the Data List. Confirm the data after performing the drive test.



f.

Turn the power switch off.


Result:
Proceed to
OK
NG



OK

SYSTEM NORMAL (GO TO PROBLEM SYMPTOM TABLE)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PROBLEM SYMPTOMS TABLE


NG

INSPECT ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING
