HYBRID / BATTERY CONTROL HYBRID CONTROL SYSTEM Pattern Select Switch EV Mode Circuit
DESCRIPTION
The EV mode signal will be sent to the hybrid vehicle control ECU assembly when the EV mode switch (integration control and panel assembly) is operated. If the specified conditions are met, the system enters EV mode and the vehicle will be driven using EV mode. This signal is then transmitted from the hybrid vehicle control ECU assembly via CAN to the combination meter assembly to illuminate the EV mode indicator.

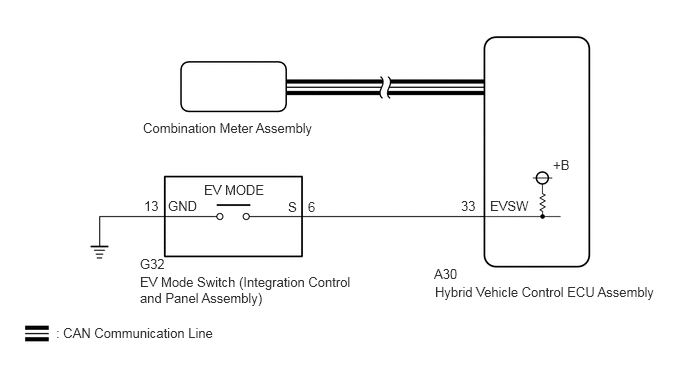

WIRING DIAGRAM
CAUTION / NOTICE / HINT
Depending on the condition of the hybrid control system and the driving conditions, the drive mode may not be able to be changed to EV mode and a warning message will be displayed on the multi-information display.
- HINT:
-
Under the following conditions, the drive mode will not be able to be changed to EV mode:
- ·
The hybrid control system is extremely hot.
·The hybrid control system is extremely cold.
·The engine is warming up.
·The SOC (State of Charge) of the HV battery is low.
·The vehicle is being driven at a speed higher than the specified value.
-The vehicle speed is approximately 40 km/h (25 mph) or higher.
·The accelerator pedal is being fully depressed or the vehicle is climbing a slope.
·The defroster is on.
·DTCs are stored.
PROCEDURE
Check if a buzzer sounded and a message was displayed on the multi-information display when attempting to enter EV mode.
- Result:
Result Proceed to No buzzer sounded and no message was displayed on multi-information display. A A buzzer sounded and a message was displayed on multi-information display. B
- HINT:
-
If a buzzer sounds or a message is displayed on the multi-information display, one or more of the EV mode entry conditions have not been met. Check that all of the EV mode entry conditions have been met before pressing the EV mode switch.
A
B
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: System Select / CAN Bus Check.
- CAN Bus Check
- 50007
- Result:
Result Proceed to All of the ECUs and sensors that are currently connected to the CAN communication system are displayed. A None of the ECUs and sensors that are currently connected to the CAN communication system are displayed, or some of them are not displayed. B
Turn the power switch off.
A
B
for GTMC Made: Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for GTMC Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING202409,999999,_57,_083091,_0694855,RM100000002NTBR,
for SFTM Made: Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING202409,999999,_57,_083091,_0694853,RM100000002NT0M,
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: System Select / Health Check.
Check for DTCs.
- Result:
Result Proceed to No DTCs are output. A DTCs are output. B
Turn the power switch off.
A
B
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Powertrain / Hybrid Control / Data List / EV Mode, EV Mode Switch.
- Powertrain > Hybrid Control > Data List
-
Tester Display EV Mode EV Mode Switch - 50003 397 79,80
Read the value displayed on the GTS.
- Powertrain > Hybrid Control > Data List
-
Tester Display Measurement Item Range Normal Condition EV Mode EV mode transition availability ON or OFF In EV mode:
ONEV Mode Switch EV mode switch (integration control and panel assembly) condition ON or OFF EV mode switch (integration control and panel assembly) being pushed and held:
ON
EV mode switch (integration control and panel assembly) not operated:
OFF
- Result:
Result Proceed to The display changes according to the EV mode switch operation. A The display does not change according to the EV mode switch operation. B
Turn the power switch off.
A
B
- Result:
Proceed to OK NG
OK
NG
Disconnect the G32 EV mode switch (integration control and panel assembly) connector.
| *a | Front view of wire harness connector
(to EV Mode Switch (Integration Control and Panel Assembly)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition G32-13 (GND) - Body ground Always Below 1 Ω
Reconnect the G32 EV mode switch (integration control and panel assembly) connector.
- Result:
Proceed to OK NG
OK
NG
Disconnect the A30 hybrid vehicle control ECU assembly connector.
Disconnect the G32 EV mode switch (integration control and panel assembly) connector.

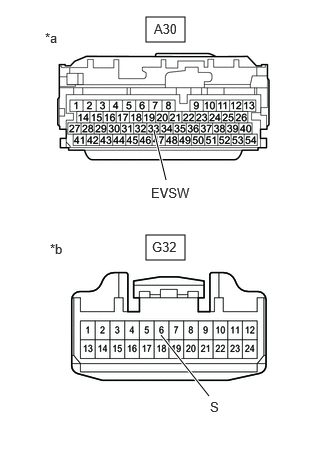

| *a | Front view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly) |
| *b | Front view of wire harness connector
(to EV Mode Switch (integration control and panel assembly)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition A30-33 (EVSW) - G32-6 (S) Always Below 1 Ω A30-33 (EVSW) or G32-6 (S) - Body ground Always 10 kΩ or higher
Reconnect the G32 EV mode switch (integration control and panel assembly) connector.
Reconnect the A30 hybrid vehicle control ECU assembly connector.
- Result:
Proceed to OK NG
OK
NG
