SUPPLEMENTAL RESTRAINT SYSTEMS  CURTAIN SHIELD AIRBAG ASSEMBLY  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 62180A 1.INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




c.

When reusing the curtain shield airbag assembly LH:

i.

Install new clips (A), new clips (B), new roof side inner garnish clip and new curtain shield airbag clip spacer to the curtain shield airbag assembly LH.



d.

Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




e.

except Moon Roof:

i.

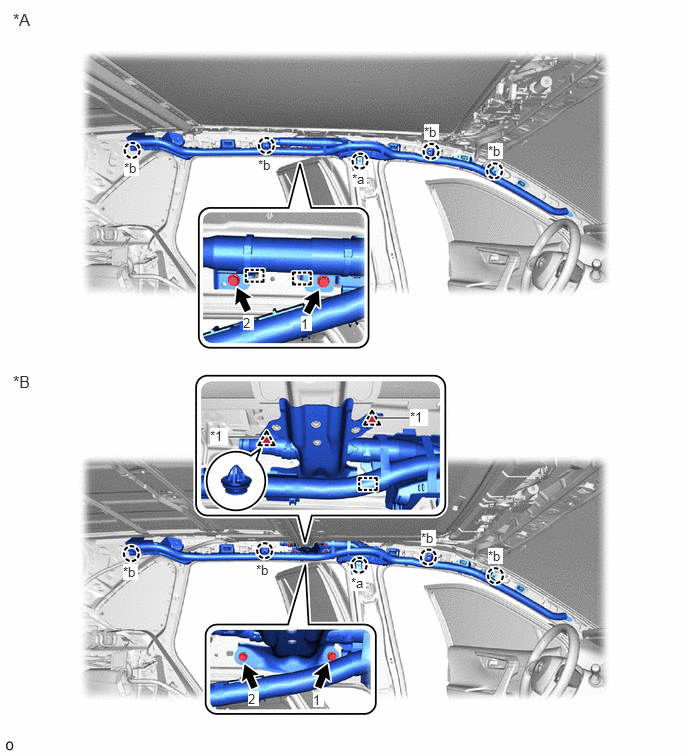

Attach the hook to set the curtain shield airbag assembly LH inflator.

B555923C01
2.375,4.552 2.708,4.552 true 3.927,4.354 4.26,4.354 true 0.135,0.104 0.542,0.385 0.406,0.281 12 false *A 3.667,1.781 3.823,1.948 0.156,0.167 10 true *a 3.135,3.292 3.25,3.448 0.115,0.156 10 true 1 2.531,3.281 2.646,3.438 0.115,0.156 10 true 2 3.656,5.99 3.813,6.156 0.156,0.167 10 true *a 5.083,5.708 5.24,5.875 0.156,0.167 10 true *b 2.667,5.854 3,6.104 0.333,0.25 10 false *b 1.281,5.875 1.438,6.042 0.156,0.167 10 true *b 5.083,1.49 5.24,1.656 0.156,0.167 10 true *b 4.417,1.292 4.573,1.458 0.156,0.167 10 true *b 2.688,1.635 2.958,1.896 0.271,0.26 10 false *b 1.292,1.667 1.448,1.833 0.156,0.167 10 true *b 2.583,7.198 2.698,7.354 0.115,0.156 10 true 2 3.26,7.208 3.375,7.365 0.115,0.156 10 true 1 4.385,5.521 4.542,5.688 0.156,0.167 10 true *b 0.135,3.875 0.542,4.156 0.406,0.281 12 false *B 4.271,4.26 4.458,4.438 0.188,0.177 10 true *1 2.188,4.458 2.375,4.635 0.188,0.177 10 true *1
*A except Moon Roof *B for Moon Roof
*1 Clip (B) - -
*a Claw (A) *b Claw (B)




f.

for Moon Roof:

i.

Attach the guide and clip (B) to set the curtain shield airbag assembly LH inflator.



g.

Attach the claw (A).


h.

Install new 2 bolts in the order shown in the illustration.

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)


i.

Attach the claw (B).


j.

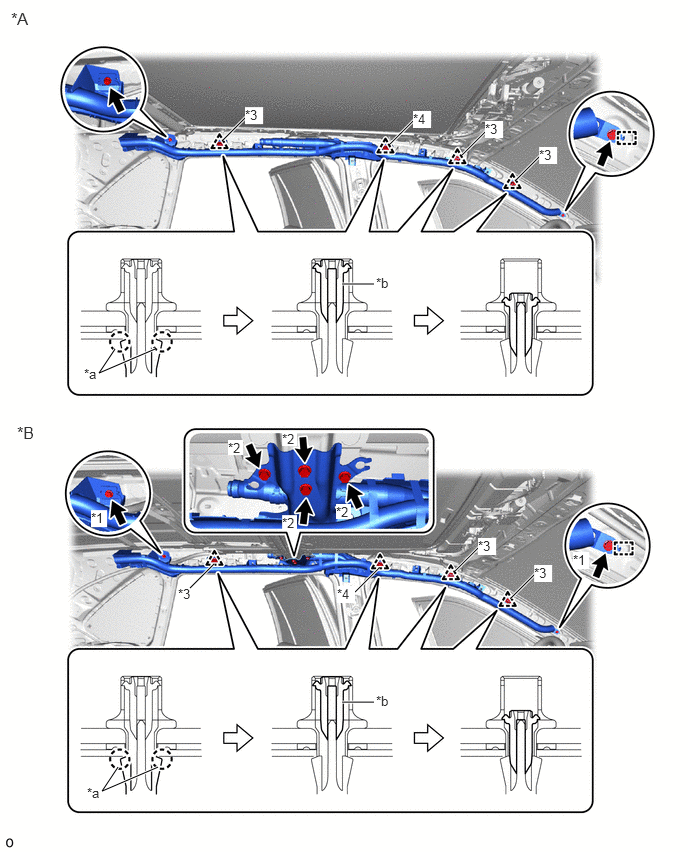

Attach clips (A) and roof side inner garnish clip.

HINT:

Attach the claw to install each clip (A) and roof side inner garnish clip.


B555924C01
1.198,3.635 1.031,3.885 1.031,3.885 1.615,3.635 true 1.229,7.99 1.063,8.24 1.063,8.24 1.646,7.99 true 3.563,2.958 3.896,2.958 true 3.563,7.313 3.896,7.313 true 5.375,1.875 5.625,1.625 true 4.813,1.615 5.063,1.365 true 4.063,1.5 4.313,1.25 true 2.323,1.458 2.573,1.208 true 1.979,6.125 2.229,5.875 true 3.698,6.167 3.948,5.917 true 4.74,5.948 4.99,5.698 true 5.323,6.229 5.573,5.979 true 0.115,0.094 0.51,0.438 0.396,0.344 12 false *A 0.177,4.406 0.573,4.75 0.396,0.344 12 false *B 0.875,3.813 1.271,4.156 0.396,0.344 10 false *a 0.906,8.177 1.302,8.521 0.396,0.344 10 false *a 3.917,2.865 4.313,3.208 0.396,0.344 10 false *b 3.917,7.219 4.313,7.563 0.396,0.344 10 false *b 5.615,1.531 5.802,1.708 0.188,0.177 10 true *3 5.052,1.26 5.24,1.438 0.188,0.177 10 true *3 2.552,1.115 2.74,1.292 0.188,0.177 10 true *3 1.854,6.104 2.073,6.375 0.219,0.271 10 false *3 4.979,5.604 5.167,5.781 0.188,0.177 10 true *3 5.563,5.885 5.75,6.063 0.188,0.177 10 true *3 4.302,1.156 4.49,1.333 0.188,0.177 10 true *4 3.51,6.104 3.698,6.281 0.188,0.177 10 true *4 5.969,5.75 6.135,5.927 0.167,0.177 10 true *1 0.948,5.313 1.115,5.49 0.167,0.177 10 true *1 2.938,4.49 3.094,4.646 0.156,0.156 10 true *2 2.375,4.583 2.531,4.74 0.156,0.156 10 true *2 2.938,5.365 3.094,5.521 0.156,0.156 10 true *2 3.5,5.25 3.656,5.406 0.156,0.156 10 true *2
*A except Moon Roof *B for Moon Roof
*1 Bolt (A) *2 Bolt (B)
*3 Clip (A) *4 Roof Side Inner Garnish Clip
*a Claw *b Pin



k.

Push the pins into the clips (A) and roof side inner garnish clip.

NOTICE:
·

Do not damage the pins.

·

Make sure that the pins of the clips (A) and roof side inner garnish clip are pushed in firmly.




l.

except Moon Roof:

i.

Attach the hook and install new 2 bolts.

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)



m.

for Moon Roof:

i.

Attach the hook and install new 2 bolts (A).

Torque:
9.8 N*m (100 kgf*cm, 87 in.*lbf)


ii.

Install new 4 bolts (B).

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)



n.

for LH Side:

i.
B555920C01
2.042,0.771 2.208,0.948 0.167,0.177 10 true *a 1.594,1.021 1.76,1.198 0.167,0.177 10 true *b
*a Guide
*b Wire Harness Clamp


Attach the wire harness clamp.



Hide 4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
