M20D-FKS ENGINE CONTROL  SFI SYSTEM  P061512  Starter Relay Circuit Short to Battery


MONITOR DESCRIPTION

While the engine is being cranked, positive battery voltage is applied to terminal STA of the ECM. If the ECM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and stores the DTC.

This monitor runs when the vehicle is driven at 20 km/h (12.43 mph) or more for 20 seconds or more.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P061512 Starter Relay Circuit Short to Battery All of the following conditions are met, and battery voltage of 10.5 V or higher is applied to the ECM for 20 seconds (1 trip detection logic):

(a) The vehicle speed is 20 km/h (12.43 mph) or more.

(b) The engine speed is 1000 rpm or higher.

(c) The STA signal is on.


·

Park/Neutral position switch

·

ST NO. 1 relay

·

Engine stop and start ECU

·

ECM


Comes on DTC stored SAE: P0617

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



A231469E99
1.229,1.969 1.604,2.146 0.375,0.177 10 false Idling 0.458,2.26 1.854,2.594 1.396,0.333 10 false Ignition Switch ON 1.063,0.844 1.656,1.073 0.594,0.229 10 false 24 km/h 2.396,2.854 3.083,3.167 0.688,0.313 10 false 5 seconds or more 3.594,2.938 4.865,3.104 1.271,0.167 10 false 20 seconds or more 2,2.333 2.406,2.521 0.406,0.188 10 false [A] 2.583,2.125 2.792,2.302 0.208,0.177 10 false [B] 4.031,0.458 4.26,0.625 0.229,0.167 10 false [C] 4.906,3.344 5.135,3.51 0.229,0.167 10 false [D] 0.813,0.333 1.844,0.583 1.031,0.25 10 false Vehicle Speed

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Start the engine.

9.

Idle the engine for 5 seconds or more [B].

10.

Drive the vehicle at a speed of 24 km/h (15 mph) or more for 20 seconds or more [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


11.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

12.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



13.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14.

Input the DTC: P061512.

15.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [C] through [D] again.

·

[A] to [D]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




WIRING DIAGRAM

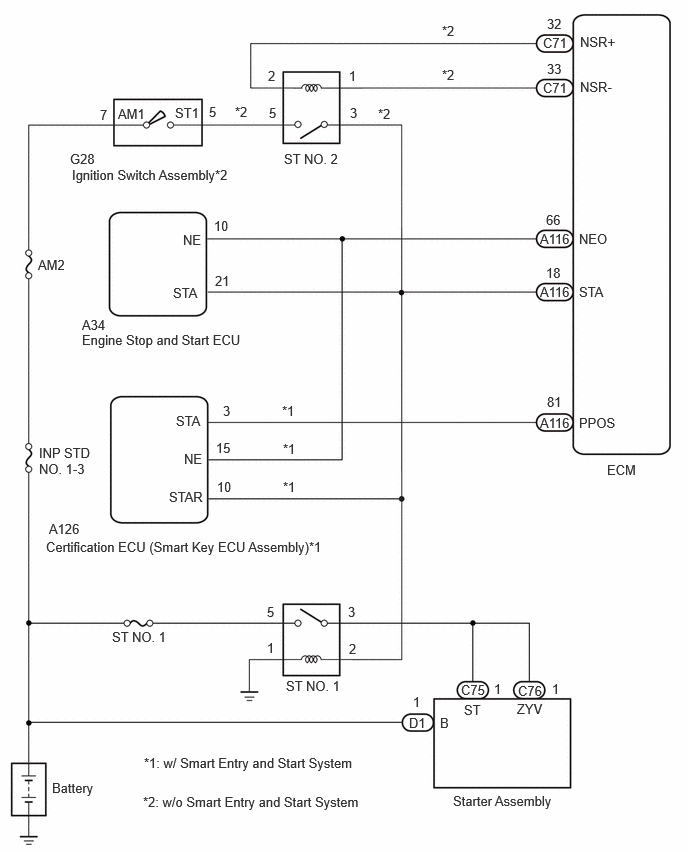

A566373E02
0.854,3.302 1.25,3.5 0.396,0.198 10 false A34 0.854,3.458 2.792,3.656 1.938,0.198 10 false Engine Stop and Start ECU 1.906,2.417 2.302,2.615 0.396,0.198 10 false NE 1.802,2.969 2.198,3.167 0.396,0.198 10 false STA 2.229,2.271 2.625,2.469 0.396,0.198 10 false 10 2.24,2.844 2.635,3.042 0.396,0.198 10 false 21 5.625,2.958 6.021,3.156 0.396,0.198 10 false A116 6.323,4.813 6.719,5.01 0.396,0.198 10 false ECM 6.031,2.406 6.427,2.604 0.396,0.198 10 false NEO 6.031,2.958 6.427,3.156 0.396,0.198 10 false STA 5.688,2.208 6.083,2.406 0.396,0.198 10 false 66 5.688,2.76 6.083,2.958 0.396,0.198 10 false 18 0.51,5.427 0.906,5.625 0.396,0.198 10 false A126 0.479,5.615 3.458,5.875 2.979,0.26 10 false Certification ECU (Smart Key ECU Assembly)*1 1.917,4.698 2.313,4.896 0.396,0.198 10 false NE 1.833,4.302 2.229,4.5 0.396,0.198 10 false STA 2.25,4.583 2.646,4.781 0.396,0.198 10 false 15 2.323,4.198 2.719,4.396 0.396,0.198 10 false 3 0.396,2.677 0.792,2.875 0.396,0.198 10 false AM2 0.75,1.74 2.688,1.938 1.938,0.198 10 false Ignition Switch Assembly*2 0.729,1.573 1.125,1.771 0.396,0.198 10 false G28 1.229,1.104 1.625,1.302 0.396,0.198 10 false AM1 1.823,1.094 2.219,1.292 0.396,0.198 10 false ST1 1.042,1.115 1.438,1.313 0.396,0.198 10 false 7 2.177,1.083 2.573,1.281 0.396,0.198 10 false 5 4.719,8.26 5.927,8.604 1.208,0.344 10 false Starter Assembly 2.979,7.063 3.75,7.26 0.771,0.198 10 false ST NO. 1 0.542,8.125 1.396,8.406 0.854,0.281 10 false Battery 1.5,7.865 3.938,8.208 2.438,0.344 10 false *1: w/ Smart Entry and Start System 1.49,8.271 4.063,8.625 2.573,0.354 10 false *2: w/o Smart Entry and Start System 2.938,4.198 3.333,4.396 0.396,0.198 10 false *1 2.948,4.594 3.344,4.792 0.396,0.198 10 false *1 2.448,1.083 2.844,1.281 0.396,0.198 10 false *2 3.625,6.292 4.021,6.49 0.396,0.198 10 false 3 3.635,6.677 4.031,6.875 0.396,0.198 10 false 2 2.781,6.292 3.177,6.49 0.396,0.198 10 false 5 2.781,6.667 3.177,6.865 0.396,0.198 10 false 1 4.833,7.313 5.229,7.51 0.396,0.198 10 false ST 0.406,4.635 0.958,5.063 0.552,0.427 10 false INP STD NO. 1-3 1.167,6.552 1.938,6.75 0.771,0.198 10 false ST NO. 1 4.802,7.104 5.198,7.302 0.396,0.198 10 false C75 4.26,7.448 4.656,7.646 0.396,0.198 10 false D1 4.302,7.229 4.698,7.427 0.396,0.198 10 false 1 4.583,7.448 4.979,7.646 0.396,0.198 10 false B 5.625,2.406 6.021,2.604 0.396,0.198 10 false A116 6.042,0.354 6.438,0.552 0.396,0.198 10 false NSR+ 6.042,0.823 6.438,1.021 0.396,0.198 10 false NSR- 5.656,0.365 6.052,0.563 0.396,0.198 10 false C71 5.656,0.833 6.052,1.031 0.396,0.198 10 false C71 5.698,0.167 6.094,0.365 0.396,0.198 10 false 32 5.698,0.635 6.094,0.833 0.396,0.198 10 false 33 2.958,1.573 3.729,1.771 0.771,0.198 10 false ST NO. 2 2.792,0.708 3.188,0.906 0.396,0.198 10 false 2 3.635,0.708 4.031,0.906 0.396,0.198 10 false 1 2.802,1.094 3.198,1.292 0.396,0.198 10 false 5 3.646,1.094 4.042,1.292 0.396,0.198 10 false 3 1.76,5.094 2.229,5.292 0.469,0.198 10 false STAR 2.26,4.99 2.656,5.188 0.396,0.198 10 false 10 2.948,4.99 3.344,5.188 0.396,0.198 10 false *1 5.625,4.323 6.021,4.521 0.396,0.198 10 false A116 5.698,4.104 6.094,4.302 0.396,0.198 10 false 81 6.031,4.323 6.573,4.531 0.542,0.208 10 false PPOS 3.938,1.104 4.333,1.302 0.396,0.198 10 false *2 4.604,0.698 5,0.896 0.396,0.198 10 false *2 4.604,0.24 5,0.438 0.396,0.198 10 false *2 5.385,7.302 5.781,7.5 0.396,0.198 10 false ZYV 5.396,7.115 5.792,7.313 0.396,0.198 10 false C76 5.146,7.094 5.542,7.292 0.396,0.198 10 false 1 5.75,7.094 6.146,7.292 0.396,0.198 10 false 1

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.READ VALUE USING GTS (STARTER SW)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Starter SW.

Powertrain > Engine > Data List
Tester Display
Starter SW
50003 372 11

e.

According to the display on the GTS, read the Data List.

Standard:
Condition Starter SW
Ignition switch ON OFF



f.

According to the display on the GTS, read the Data List while the vehicle is being driven with an engine speed of 1000 rpm or more at a vehicle speed of 20 km/h (12.43 mph) or more.

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


Standard:
Condition Starter SW
Driving at 20 km/h (12.43 mph) or more (engine speed 1000 rpm or more) OFF



HINT:

If the result of either of the above is not as specified, proceed to the next step with the ignition switch ON, GTS connected and Data List item "Starter SW" selected.


Result:
Proceed to
OK
NG


HINT:

If the starter assembly operates continuously when the ignition switch is turned to ON, proceed to the next step without reading the Data List item "Starter SW".



OK

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


NG

2.INSPECT ST NO. 1 RELAY (CHECK FOR SHORT CIRCUIT)
2.INSPECT ST NO. 1 RELAY (CHECK FOR SHORT CIRCUIT)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Starter SW.

Powertrain > Engine > Data List
Tester Display
Starter SW
50003 372 11

e.

Remove the ST NO. 1 relay from the No. 1 engine room relay block and junction block assembly.


f.

According to the display on the GTS, read the Data List.

Result:
Result Proceed to
The Data List item "Starter SW" does not change from ON. A
The Data List item "Starter SW" changes from ON to OFF. B


HINT:
·

When the result of the above inspection is "The Data List item "Starter SW" does not change from ON", the ST NO. 1 relay is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF ST NO. 1 RELAY)

B

REPLACE ST NO. 1 RELAY

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF ST NO. 1 RELAY)
HINT:

The purpose of this step is to check for ST NO. 1 relay terminal voltage under abnormal conditions.


A562511C01
0.094,0.063 0.406,0.219 0.313,0.156 10 false *1 2.125,1.188 2.438,1.344 0.313,0.156 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 ST NO. 1 Relay


a.

Remove the ST NO. 1 relay from the No. 1 engine room relay block and junction block assembly.


b.

Turn the ignition switch to ON.


c.

Measure the voltage between ST NO. 1 relay terminal 2 and body ground.

HINT:
·

Make a note of the measured voltage as it will be necessary for the inspecting the change in voltage in the next step. As the next step should be conducted under the same conditions, keep the ignition switch ON and do not install the ST NO. 1 relay.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.

·

If any voltage was measured with the ignition switch ON, one of the following malfunctions is suspected:

-

Short to +B in the circuit of a connected ECU or the switch.

-

Short to +B in the wire harness.





Result:
Proceed to
NEXT



NEXT

4.INSPECT ENGINE STOP AND START ECU (CHECK FOR SHORT CIRCUIT)
4.INSPECT ENGINE STOP AND START ECU (CHECK FOR SHORT CIRCUIT)
A562511C01
0.094,0.063 0.406,0.219 0.313,0.156 10 false *1 2.125,1.188 2.438,1.344 0.313,0.156 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 ST NO. 1 Relay


a.

Disconnect the engine stop and start ECU connector.


b.

Measure the voltage between ST NO. 1 relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between ST NO. 1 relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between ST NO. 1 relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the engine stop and start ECU is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)

B

REPLACE ENGINE STOP AND START ECU

Click hereEngine / Hybrid System>STOP AND START>ENGINE STOP AND START ECU>REMOVAL


5.INSPECT ECM (CHECK FOR SHORT CIRCUIT)
A562511C01
0.094,0.063 0.406,0.219 0.313,0.156 10 false *1 2.125,1.188 2.438,1.344 0.313,0.156 10 false *2
*1 No. 1 Engine Room Relay Block and Junction Block Assembly
*2 ST NO. 1 Relay


a.

Disconnect the ECM connector.


b.

Measure the voltage between ST NO. 1 relay terminal 2 and body ground and compare it to the voltage measured in the previous step.

Result:
Result Proceed to
The voltage between ST NO. 1 relay terminal 2 and body ground does not change when the connector is disconnected. A
The voltage between ST NO. 1 relay terminal 2 and body ground changes when the connector is disconnected. B


HINT:
·

If the voltage is the same before and after disconnecting the connector, the ECM is normal.

·

DTCs may be stored during this inspection. Check for DTCs and clear them using the GTS.





A

6.CHECK HARNESS AND CONNECTOR (ECM - ENGINE STOP AND START ECU - ST NO. 1 RELAY)

B

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


6.CHECK HARNESS AND CONNECTOR (ECM - ENGINE STOP AND START ECU - ST NO. 1 RELAY)
a.

Disconnect the ECM connector.


b.

Disconnect the engine stop and start ECU connector.


c.

Remove the ST NO. 1 relay from the No. 1 engine room relay block and junction block assembly.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A34-21 (STA), A116-18 (STA) or 2 (ST NO. 1 relay) - Other terminals Always 10 kΩ or higher



Result:
Result Proceed to
OK (w/ Smart Entry and Start System) A
OK (w/o Smart Entry and Start System) B
NG C



A

CHECK SMART ENTRY AND START SYSTEM (CHECK FOR STA TERMINAL VOLTAGE OF SMART KEY ECU ASSEMBLY)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING


B

CHECK NEUTRAL START (ST NO. 2) RELAY CIRCUIT

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>Starter Signal Circuit


C

REPAIR OR REPLACE HARNESS OR CONNECTOR
