MIRROR (INT)  INNER REAR VIEW MIRROR  INSTALLATION


PROCEDURE

Hide 87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY

HINT:

The illustrations are representative examples, and details may differ.

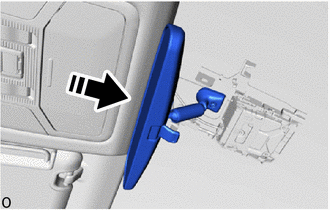

a.
B528123C01
0,0 0,0 false
V113147

Install in this Direction


Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.


b.
B528121

Using a T20 ''TORX'' socket wrench, install the inner rear view mirror assembly with the "TORX" screw.

Torque:
1.75 N*m (18 kgf*cm, 15 in.*lbf)


Hide 86466D 2.INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>INSTALLATION

Hide 86466E 3.INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>INSTALLATION
