RM36D0EC _58 Vehicle Interior _083098 MIRROR (INT) _0400604 INNER REAR VIEW MIRROR A

MIRROR (INT)  INNER REAR VIEW MIRROR  REMOVAL


PROCEDURE

Hide 86466E 1.REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL

Hide 86466D 2.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>REMOVAL

Hide 87810 3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

HINT:

The illustrations are representative examples, and details may differ.


a.

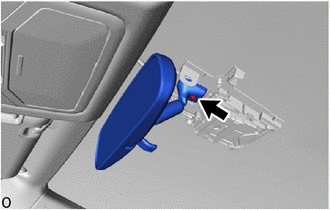

B528121

Using a T20 "TORX" socket wrench, remove the "TORX" screw.


b.

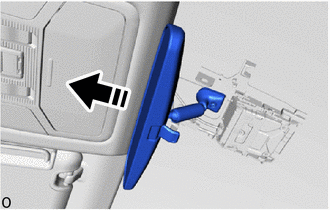

B528122C01
0,0 0,0 false
V113147

Remove in this Direction


Slide the inner rear view mirror assembly as shown in the illustration to remove it.
